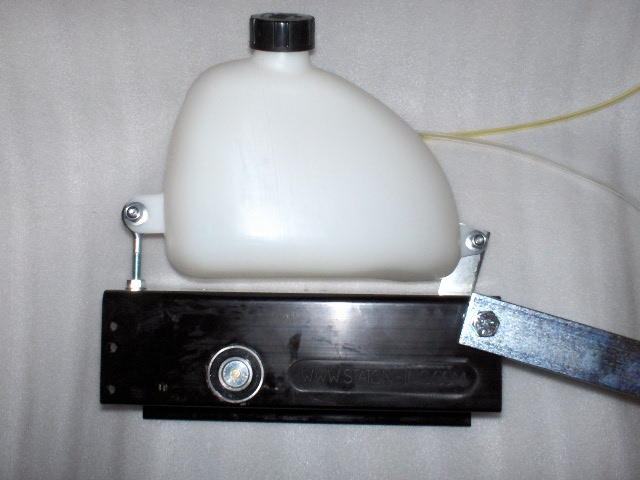

Fuel tank 64 oz Top mount Gas Tank with Mounting Bracket hardware. Be sure and print off or refer to these instructions when installing the tank.
Fuel Tank - Gas Tank, Holds approximate 64 oz of fuel. Comes complete with 2 lines approximate 18" long.
The YELLOW line (has a fuel filter on the end of the line in the tank) goes to where the BLACK line was on the carb. The clear line goes where the clear line was/return fuel.
Includes the fuel cap. It has two mounting flanges that are about 9.5" apart.
About 4" Wide, 10 - 1/2" Long including the mounting flange, 7" Tall including the plastic cap.
This tank will extend the range from the standard tanks about 3 times.
You can add this tank kit regardless of the brand, size, Four or Two Cycle engines.
Includes the 1/8" x 1" x 3" long Zinc Plated bracket and a 1/4-20 x 2" long Eye Bolt with hardware for mount to the top of the friction drive channel. This bracket is held on with the 3/8-16 x 6" long tap bolt.
You will have to turn the keps nuts a little at a time as you turn the bolt to work them together.
Includes Five Steel Bond Rubber washers to hold the tank plus all mounting hardware.
You will need to drill a 1/4" hole on the channel for the Eye Bolt.
If your channel is not drilled, measure from the Left side - Rear of the channel over 2-1/4" to the right and from the bottom up to the center of the hole about 1/4" to 5/16".
Most of these small engines 25 to 50 cc will get from 160 to 240 mpg.
64 oz of fuel could run from 80 to 120 miles per tank.
