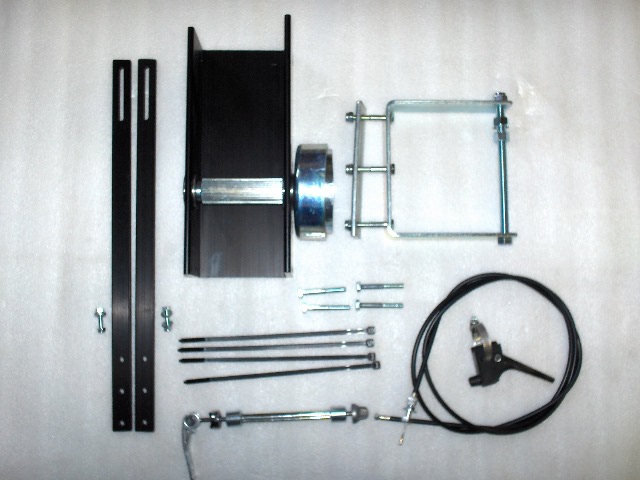

One: CNC Machined, Heat treated and Zinc Plated 1" Drive Roller with 12mm x 1.50 male threads.
One: 76mm Clutch Drum with 12mm x 1.50 female threads.
If you want LESS top speed, more pulling power for hills and bucking the wind pick a smaller drive roller.
If you want a FASTER top speed, less pulling power on hills and bucking the wind pick a larger drive roller.
Keep in mind the larger the drive roller you will have to assit pedal the bike up hills and high winds.
One: Custom made 60"long throttle cable with the small lever & #16 mini hose clamp.
Four: 8” long Black Nylon ties to secure the throttle cable and kill switch wire to the frame. The kill switch is NOT included. Be sure and add the type you want to the order.
Two: ¼” x ¾” x 15.25” long Aluminum flat bar, CNC machined and Black Anodized.
One: Alloy Skewer - Quick Release, 5m -.80 x 161mm with channel spacers and hardware.
One: "U" Bracket with backer plate, zinc plated with hardware
Four: 6mm x 1.0 Hex Head Bolts 8.8 grade bolts.
One: Engine Spacer 1.16" tall, CNC machined and made out of steel, zinc plated. This keeps water from getting into the clutch rotor, more secure mounting of the engine and used for safety.
One: 1/4" thick Aluminum Extrusion channel that is CNC machined and Anodized Black. The channel is 4" over all width x 3.50" Inside width.
(not a bent thin piece of steel like the others that have tried to copy my product)
Two 5/8” ID x 1-3/8" OD x 7/16" wide High Speed Double Sealed Ball Bearings with retaining ring.
We use one High Speed Double Sealed Ball Bearing on each side of the Drive Roller to support it and remove all the pressure off the engine.
Rear mount kits will come with a 60" long throttle cable with the small black lever and hose clamp.
If you have a Ladies Frame bike you will need approxixatly 68" throttle cable.
Some folding bikes like the 20" Dahon need a 72" long throttle due to the way the frame and long up raise on the handle bars.
Front mount kits should be put on Trikes only will come with a 30" long throttle cable with the small black lever and hose clamp. This kit includes everything except the ENGINE & KILL SWITCH.
If you would like to order a kill switch, click on one of the links below to add them to your order.
High Quality Kill Switch with 60" wire - Click Here
High Quality Kill Switch with 90" wire - Click Here
If you have a 1.60HP Engine and up to 280 lb. rider, mostly flat ground and some rolling hills the 1-1/8" drive roller is the one to pick.
Lighter riders will take off faster and it will pull the hills better. You allways can pedal the bike at any time.
Be sure and let us know if you have the Zenoah 41.5 cc, TANAKA PF-4000, Tanaka 33 & 35 cc, TLE33 33cc, TLE43 42.7cc, Robin Subaru EH035 33.5 cc four cycle or Huasheng 142F 49 cc Four Cycle - 4 Stroke Engine.
This kit will also fit some of the China made engines with the same clutch rotor and bolt pattern as the above listed engines.
Note: We can only make a throttle cable for the engines that we sell or know what type of throttle cable you need.
If you have a China made engine or one that is not listed, you will get a cable and a #48 brass end for you to solder onto the cable. Measure twice, cut once!!!
NOTE: This listing is for the 1" Drive Roller ONLY.
If you need a different size, be sure and add the correct listing to the cart.
If you want to use the Honda GXH50 you will have to add the parts below.
Throttle cable Assembly for Honda GXH50 QXA - Click Here
I installed this onto my 1997 Jamis Aragon hybrid bike with a 49cc Huasheng 4 stroke and this particular kit hasn't failed me yet!
I've had this kit for a while (almost a year) and can say that the 1" roller provides plenty of torque for those steep San Francisco hills and on flat roads, still goes around 20-25 mph.
