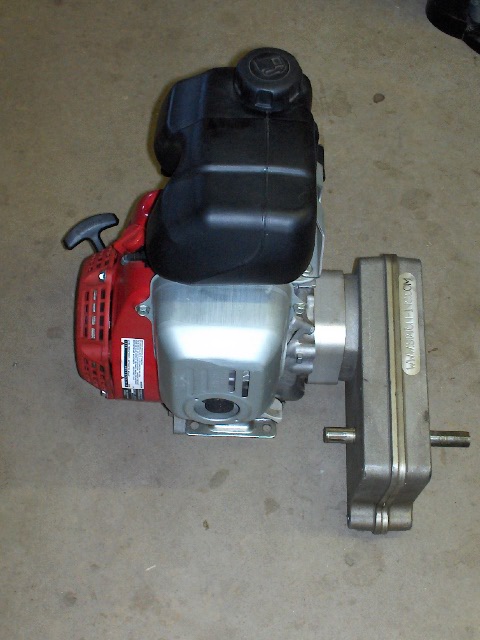

The Honda GX100 Four Cycle engine is included. It alone is worth $349.00. The engine has been started and ran for about 10 mins with the gearbox.
This includes the 18.75 to 1 gearbox with the Dual drive. Right now the output shafts of the gearbox are at a 9 O'Clock postition looking at the gearbox. You could change this to a 6 or 3 is needed.
This includeds GX100 CNC machined adaptor that sell for $49.00 Product ID: 3369.
The GX100 Super Duty 2,000 rpm Three Shoe clutch rotor, is also included, it sells for $69.00 Product ID: 3368.
The 18.75 to a gearbox with the Daul output shafts sell for $176.50 Product ID: 2363.
You could add a 1/2" (Web ID 3256) or 5/8" (3257) shaft that turns CW at a 5 to 1 ratio to connect a generator - this is NOT included.

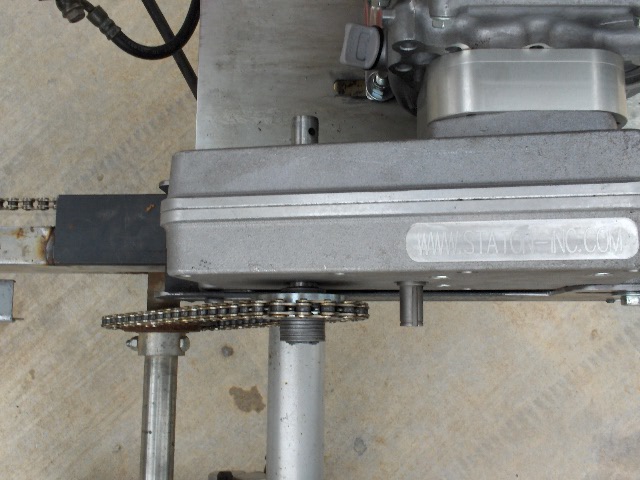

Note: This shaft is shown in the last picture - again not included.
The total weight is 36 lbs & 4 oz with oil and gas in the engine.
The width is 15" wide with the Dual outputs shafts.
This is not for a bicycle. It can be used for several other application. Max engine rpm is 4,000.
The shaft has to be cut off 1.18" then drilled and tapped with a 1/4-28 Fine Thread so gearbox fits closer to the enigne.
