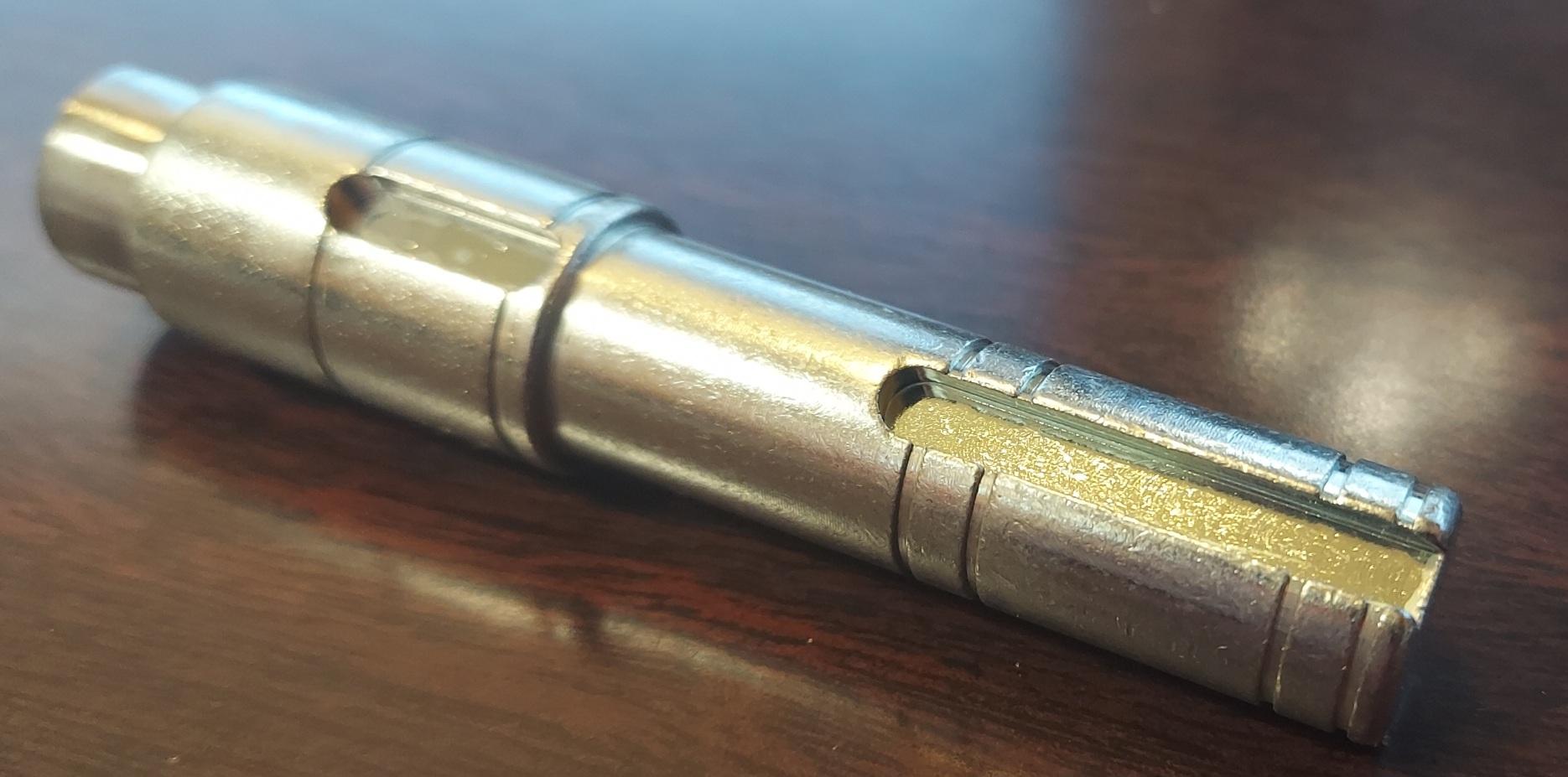

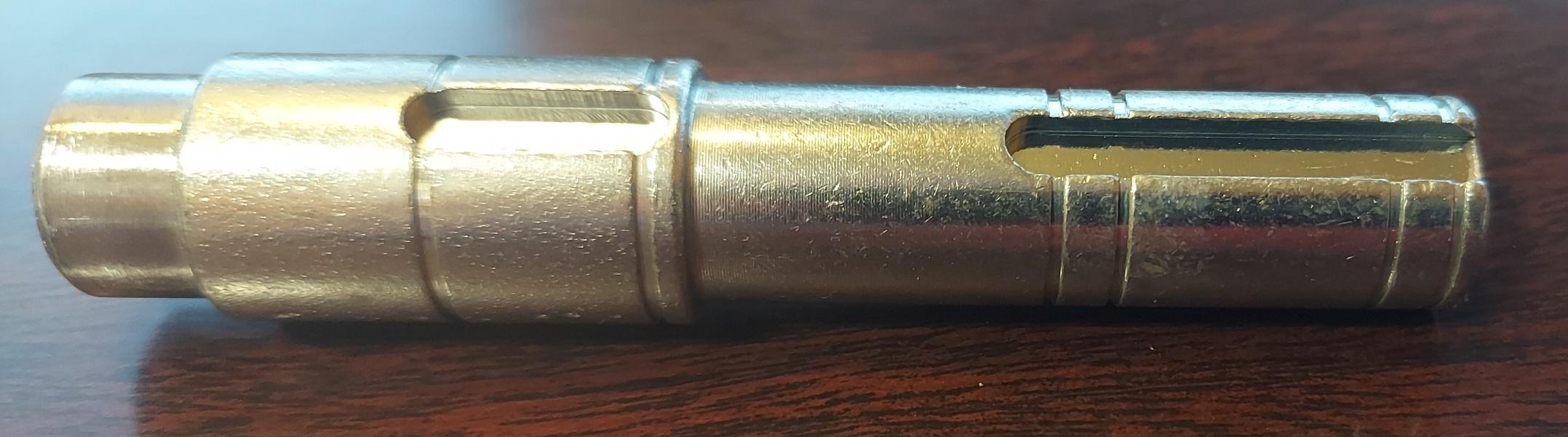

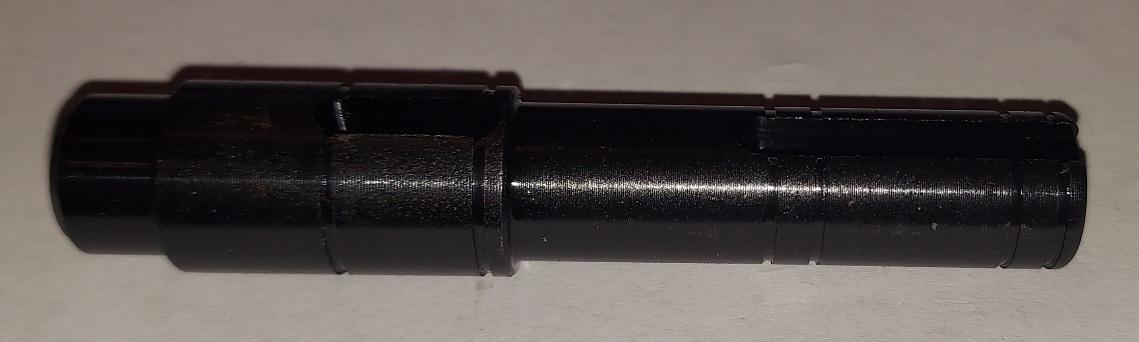

Inside Drive Output Shaft, 5/8" Bearing OD x 3/4" OD for the 60 tooth gear x 3.84" Over All length. Zinc plating or Black oxide coating.

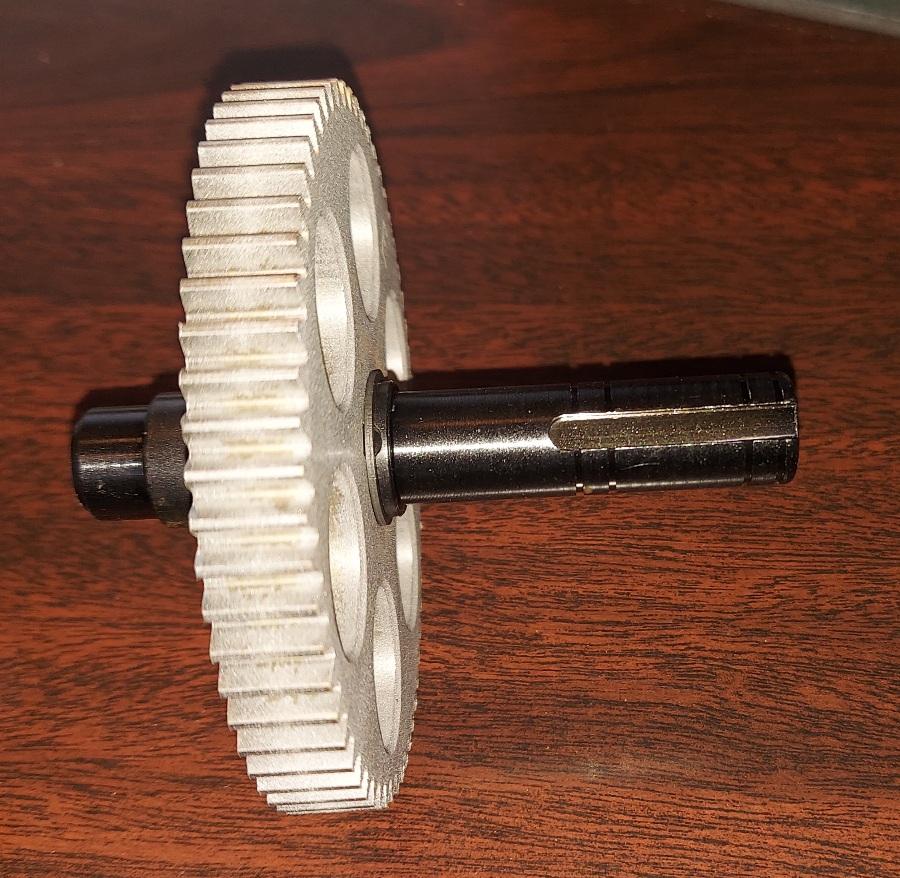

It has one 3/16" keyway grove on the 3/4" OD for the 60 tooth gear (NOT INCLUDED) and two snap rings groves to hold the gear in place.
It has one 3/16" x 1-1/4" long keyway grove on the 5/8" OD for the sprocket or pulley to drive from.
The 5/8" OD shaft has three snap ring groves to hold the sprocket, pulley & key in place and from comming off the shaft in case the set screws come loose.
Used in our 16.07 to 1 and 18.75 to 1 Inside drive gear reduction boxes.
Be sure and add any other parts you need to your order as this is the SHAFT only.
You may need 3/4" Ext. snap rings to hold the 60 tooth gear in place.
You may need 5/8" Ext. snap rings to hold the sprocket pulley or key in place.
You may need 3/16" x 3/16" x 1/2" key for the 60 tooth gear.
You may need 3/16" keys to hold the sprocket pulley or key in place. We have these in 3/8", 1/2", 3/4" and 1" long keys.
