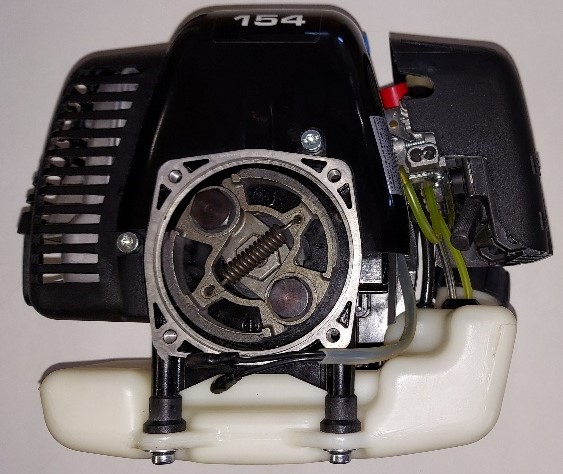

SOLO Typ: 154 54.2cc 3.0 hp Solo 2-Stroke 2-Cycle Engine, 7,500 rpms. EPA COMPLIANT.
Each engine is test started before shipping.
This would make a very good Drone or RC plane, RC Vehicle engine.
If using with a 18.75 to 1 gearbox to power a Motorized wheel barrow use a OUTSIDE drive ONLY gearbox. The Inside drive shaft will contact the engine and you will NOT you cannot bolt it to the gearbox.
NOTE: Buy the engine and the friction drive kit separte you will save money but YOU have to put it all together.
All Angle Clutch Shaft, Recoil pull start.
Very High Quality engine made in Germany (Deutschland). SOLO Kleinmotoren GmbH was founded in Stuttgart in 1948.
No Warranty - Sold AS IS - No Refund - No Return.

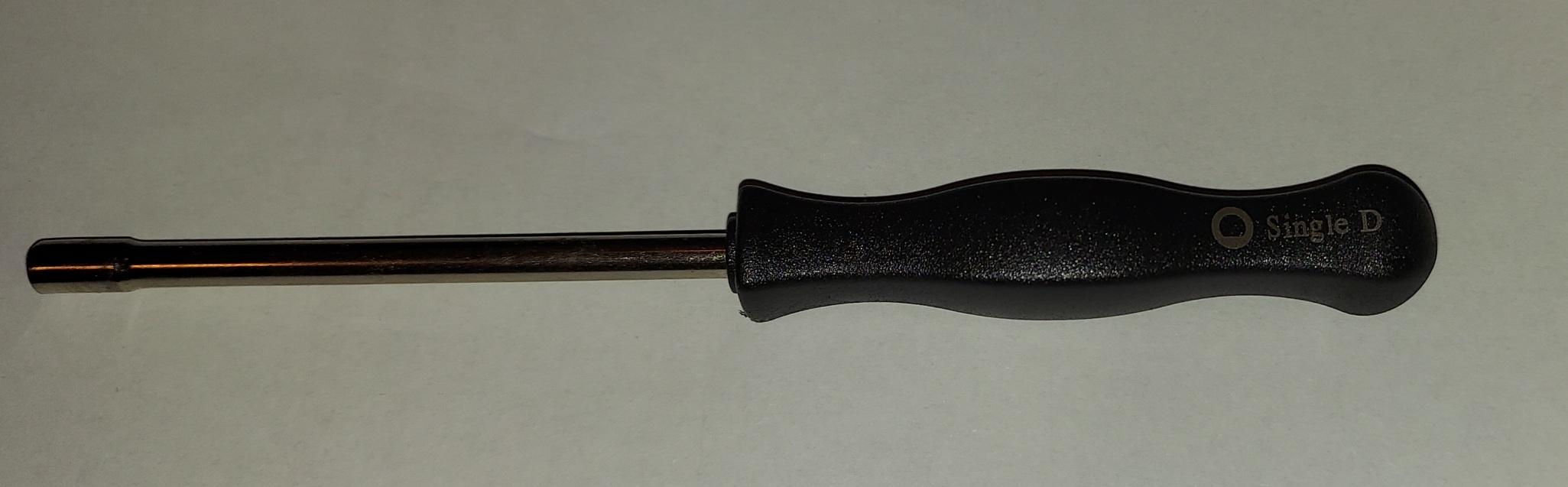

Note: Not included, but you can buy the Single "D" carburetor adjusting tool for the low and high speed rpm if needed and you know how to adjust it. Make very small movements. This tool is pictured but is NOT included.
Mix at a ratio is 50 : 1 when using a High Quality Air Cooled Two Cycle oil JASO FD oil or higher.
The Maruyama XD formula Product ID: 0028 or 2285
Make sure you READ the Solo engine manual regarding starting the engine and the pull rope.
English starts on page 10. Read on page 14 about the starter. Read all the pages from 10 to 18 before starting the engine.
NOTE: If you try to PULL the Starter rope without the decompression valve pressed in you can damage the starter assembly and/or the rope.
Press the decompression valve EVERY TIME before pulling on the starter handle to make the startup process easier. The decompression valve automatically returns to the normal position after each pull. Be sure and read about the Choke in the manual.
Always pull the rope out in a straight line. Do not pull the rope all the way out – risk of rope breaking. After pulling the starter rope. Always manually guide the rope back into its start position. Do NOT let it spring back!
None of these parts are included, pictures just show the engine mounted to our part.
This engine works with our 18.75 to 1, 16.07 to 1 and 4.28 to 1 reduction gear boxes, 78mm Double Bearing clutch housings and the 78mm Friction Drive kits, NONE of these parts are included.
This Solo Typ: 154 engine has the same 6mm x 1.0 threaded four hole bolt pattern as the Honda GX35 but has 87.5% more power. It has 50% more power then a Honda GX50 and 1 HP more power. It has the same size of two shoe clutch rotor as the Honda GX31, GX35 and GX50.
If using this on one of our products you have to order the bracket, throttle cable and small black lever seperate if needed.
Actual Weight 8.05 lbs
BOSCH Spark Plug: WSR6F
CHAMPION Spark Plug: RCJ-6Y
Link below is a parts reference if needed. Others may be found on google.
http://www.psep.biz/store/solo_model_154_sm_small_engine_repair_parts.htm
