Friction Drive Rear Mount Kit with the Honda GX35 35.8 cc 1.60HP Four Cycle - 4 Stroke engine. This kit has the .930" Drive Roller.
The ID of the channel is 3.5" wide.

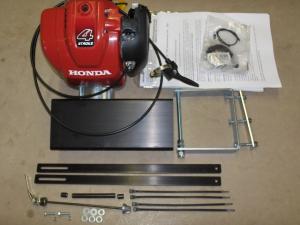

This engine kit has the 76 mm clutch rotor - 78 mm clutch drum and can be ordered with five sizes drive rollers. This is a complete Rear mount friction drive kit that will mount to most Bicycles. The kit includes:
One: Honda GX35 35.8 cc 1.60 hp Four Cycle Engine with engine manual. One: Custom made 60" long throttle cable with the small lever & #16 mini hose clamp.
Four: 8” long Black Nylon ties to secure the throttle cable and stop switch wire to the frame.
One: Remote push button stop switch with connecting end.
Two: ¼” x ¾” x 15” long Aluminum flat bar, CNC machined and Black Anodized.
One: Alloy Skewer - Quick Release, 5m -.80 x 161mm with channel spacers and hardware.
One: "U" Bracket with backer plate, zinc plated with hardware
Four: 6mm x 1.0 x 40 mm Hex Head Bolts.
One: Engine spacer, steel, zinc plated.
One: 76 mm Clutch Drum with a 12mm x 1.50 female right hand thread.
One: 5/8" x 1/2" wide shaft collar used as a spacer between the bearing and clutch drum.
One: 1/4" thick Aluminum Extrusion channel that is CNC machined and Anodized Black. The channel is 4" over all width x 3.50" Inside width.
( not a bent thin piece of steel like the others that have tried to copy my product )
Two: 5/8” ID x 1-3/8" OD x 7/16" wide High Speed Double Sealed Ball Bearings with retaining ring.
We use one High Speed Double Sealed Ball Bearing on each side of the Drive Roller to support it and remove all the pressure off the engine.
This kit has the .930" drive roller is good for riders over 250 lbs and / or if you have lots of hills with a top speed of about 22 mph. Mostly used with engines 1.10 HP and Higher.
The 1" drive roller is good for riders up to 200 lbs and some hills top speed is about 25 - 27 mph. Mostly used with engines 1.10 HP and Higher.
If you want LESS top speed, more pulling power for hills and bucking the wind pick a smaller drive roller.
If you want a FASTER top speed, less pulling power on hills and bucking the wind pick a larger drive roller.
Keep in mind the larger the drive roller you will have to assit pedal the bike up hills and high winds.
About the Engine:
•Honda 35.8 cc Mini 4-Stroke OHC •OHC engine reduces weight, noise, improves start ability and reduces oil consumption. •The internal timing belt is maintenance free. •Powerful, Easy starting, Fuel efficient •Runs on regular gas (no mixing) •Quiet - pleasing "low" tone •EPA/CARB compliant
* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 7000 rpm . Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.
Not only is the quality of the product good, it really works better than I could have imagined. I expected a friction drive setup like this to have issues and be unreliable. Boy was I wrong! If you don't want to deal with chain driven setups than this is the next best thing. If you don't wan to turn your bike into a "motorcycle" this is perfect, using the .930" roller with the Honda GH35 engine it meshes seamlessly with the 36T chaining and my 28-14T 5 speed. I can peddle at about 15mph if I'm working hard, and that's what the cruising speed on this engine is on my setup. It effortlessly will pull you along and really help you climb hills. I use mine as a hybrid so I usually peddle along with it since I have it geared to work that way. If you aren't sure whether you want to give it a chance, just do it!
