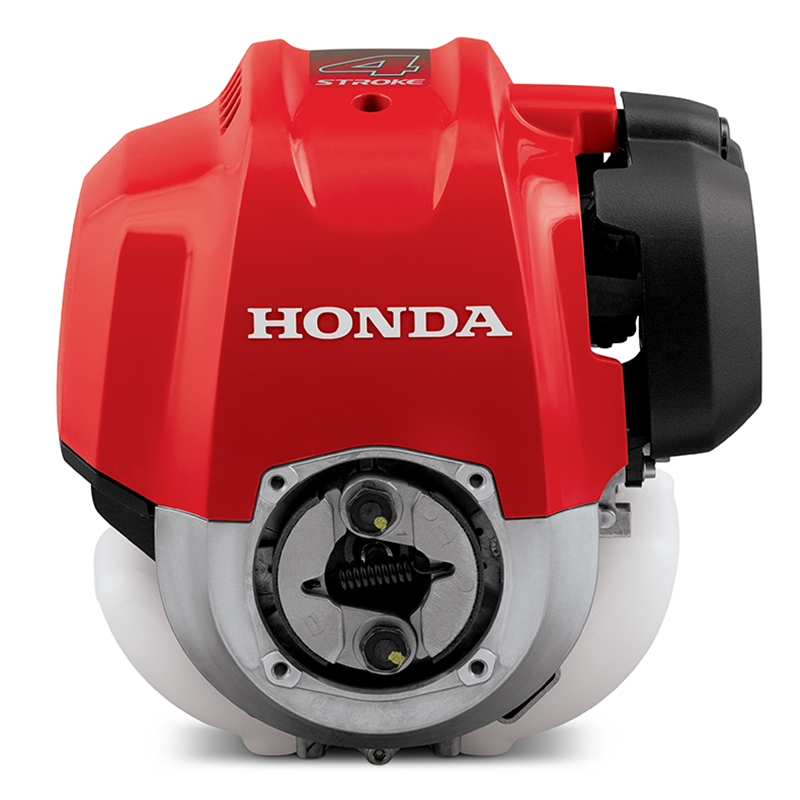

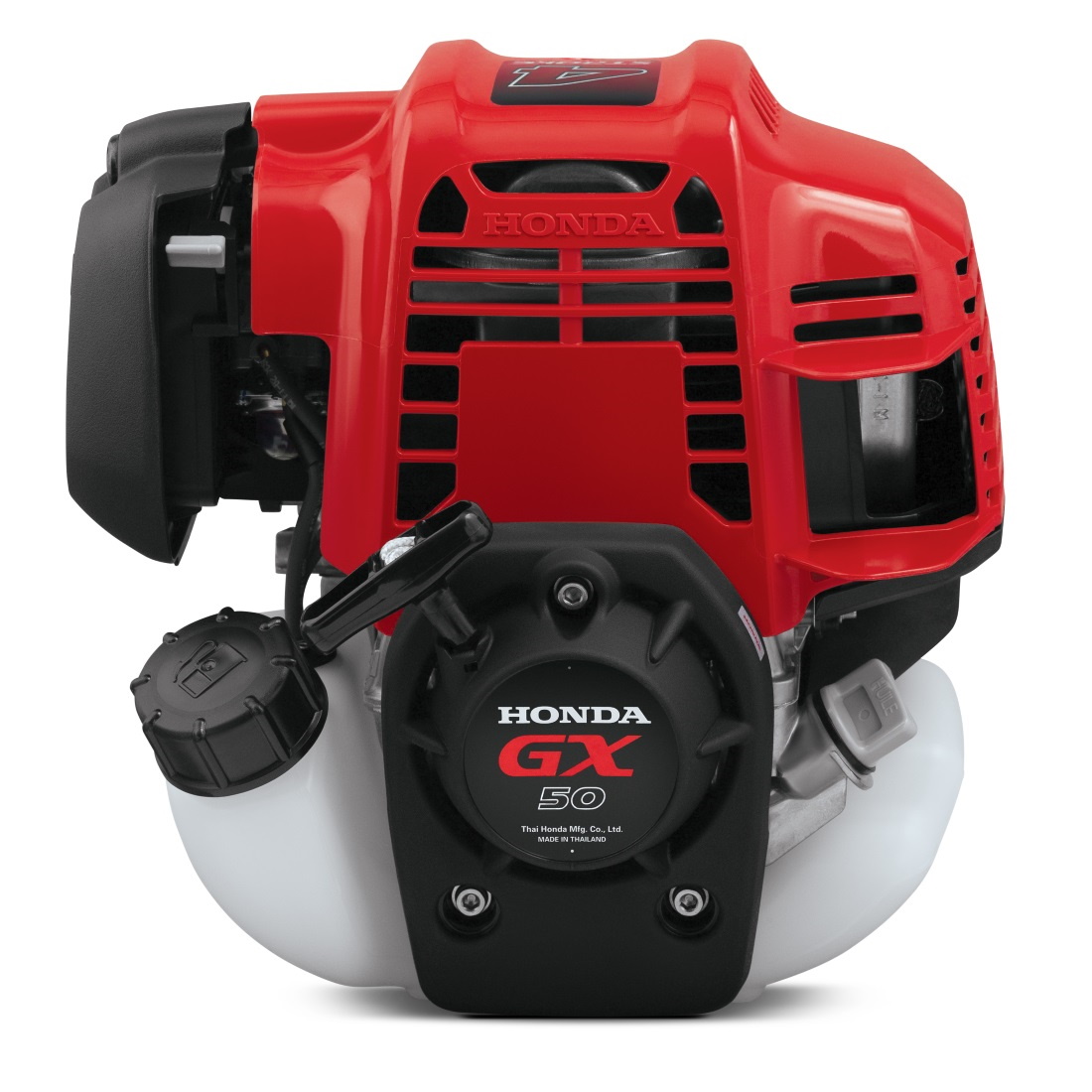

Honda GX50 2.0hp OHC Mini 4 Stroke Clutch-Drive (Horizontal or Vertical Mount) Honda GX50NTS3. Made in Thailand. Actual weight 9.30 lbs.
The Honda GX50 also fits our 18.75 to 1 gear reduction boxes. We also have Double bearing clutch housings in 1/2" and 5/8" shafts.
For more information see link below.
https://engines.honda.com/models/model-detail/gx50#PTO
OWNER’S MANUAL
GX25 • GX35 • GX50
https://cdn.powerequipment.honda.com/engines/pdf/manuals/00X37Z3V6020.pdf
Make light work of hard tasks.
Honda's GX50 general-purpose engine expands our Mini-Four Stroke lineup with a model that offers high output and light weight—extending into more demanding commercial and rental applications with excellent fuel efficiency. Featuring a compact and lightweight design, the GX50 is the first Honda four-stroke model in the two-horsepower class that is 360-degrees inclinable during operation and storage.
- Commercial lawn and garden equipment
- Tillers / cultivators
- Construction / industrial equipment
- Agricultural equipment
- Water pumps
-
- Easily accessible spark plug
- Easy to drain and re-fill oil
- No mixing of gas and oil
-
SPECIFICATIONS
|
GX50
|
| Engine Type |
Air-cooled 4-stroke OHC |
| Bore x Stroke |
43 mm x 33 mm |
| Displacement |
47.9 cm3 |

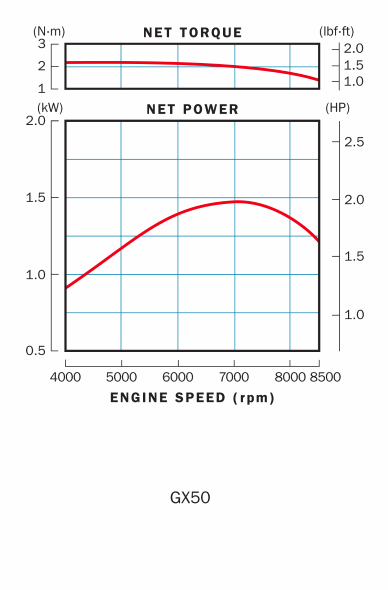

| Net Power Output* |
2.0 HP (1.47 kW) @ 7,000 rpm |
| Net Torque |
1.6 lb-ft (2.2 Nm) @ 5,500 rpm |
| PTO Shaft Rotation |
Counterclockwise (from PTO shaft side) |
| Compression Ratio |
8.0:1 |
| Carburetor |
Diaphragm-type (overflow return) |
| Ignition System |
Transistorized magneto |
| Starting System |
Recoil |
| Lubrication System |
Crankcase pressure–driven |
| Governor System |
NA |
| Air Cleaner |
Dry Paper |
| Oil Capacity |
4.4 US oz (130cc) |
| Fuel |
Unleaded 86 octane or higher |
| Fuel Tank Capacity |
0.67 U.S. qt (.63 liter) |
| Dry Weight |
9.1 lb (4.1 kg) |
WARNING: California Prop 65 Info
DIMENSIONS
|
GX50
|
| Length (min) |
7.8" (199 mm) |
| Width (min) |
10.2" (260 mm) |
| Height (min) |
10.4" (263 mm) |
