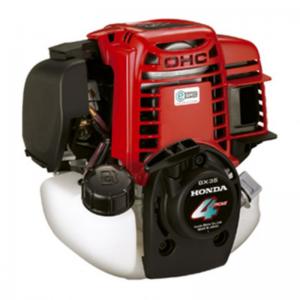

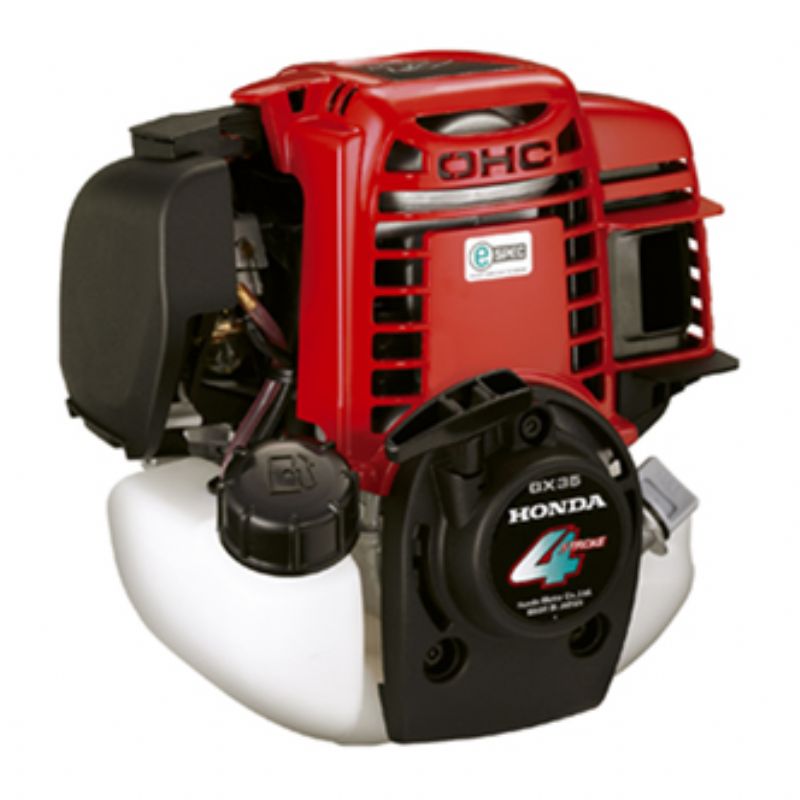

Honda GX35 35.8 cc 1.60 HP Four Cycle Engine.
Honda GX35NTXS3 35.8 cc 1.60 HP Four Cycle Engine.

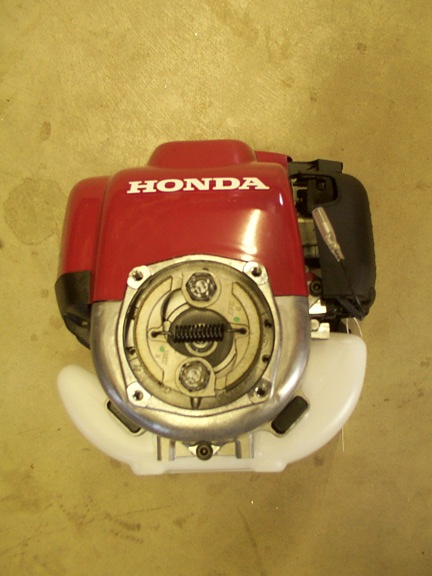

This engine has the 76mm clutch rotor and uses a 78mm Clutch drum.
The Honda GX35 is made in Thailand.
Engine Type Air cooled 4 stroke OHC petrol engine
Cylinder Sleeve Type Aluminium Cylinder
Bore x Stroke 39 x 30mm
Displacement 35.8 cm3 Compression 8.0 : 1

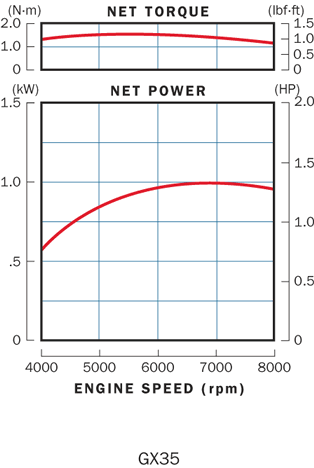

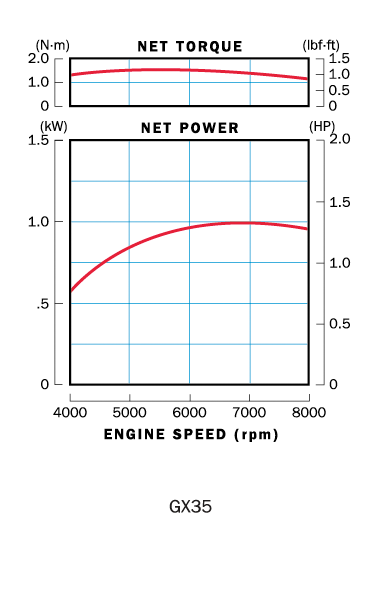

Net Power 1.0 Kw (1.3 HP) / 7000 rpm)
Max net torque 1.6 Nm / 0.16 Kgm / 5500 rpm
Ignition System Transistorised
Starting System Recoil
Fuel tank Capacity 0.63 l
Fuel cons. at rated power 0.71 L/hr - 7000 rpm
Lubrication Crankcase Pressure Driven
Engine Oil Capacity 0.1 l
Dimensions (L x W x H) 198 x 234 x 240 mm
Dry Weight 3.33 kg (w/o clutch). (the engine does come with the clutch rotor - two shoes and spring)
OWNER’S MANUAL
GX25 • GX35 • GX50
https://cdn.powerequipment.honda.com/engines/pdf/manuals/00X37Z3V6020.pdf
Great running engine!
This engine is made in Thailand not Japan which might explain the absence of the Honda logo on the engine cover. But I guess since the glory days of Honda where almost all of their products were Japan made, things changed & most manufacturing has transferred to overseas factories to save Honda money. The parts seem pretty much identical in both design and build quality compared to the Japan made GX35s. The included manual provides lots of helpful & useful maintenance tips & teaches how to use the engine properly.
It's a great running little engine & I expect to get some good use out of it. There's just one problem with the wiring for the kill wire. It is not a copper kill wire so any kill button/switch with a copper wire will not work with this engine which is basically most motorized bicycle kill buttons as pretty much all motorized bicycle kill buttons use copper wiring. I had to pull the spark pug to shut off the engine after trying a kill button that uses a copper wire when I tried my $5 kill button I bought along with the engine.
