We may match or beat its competitors’ prices. Call or email.
In Stock now.

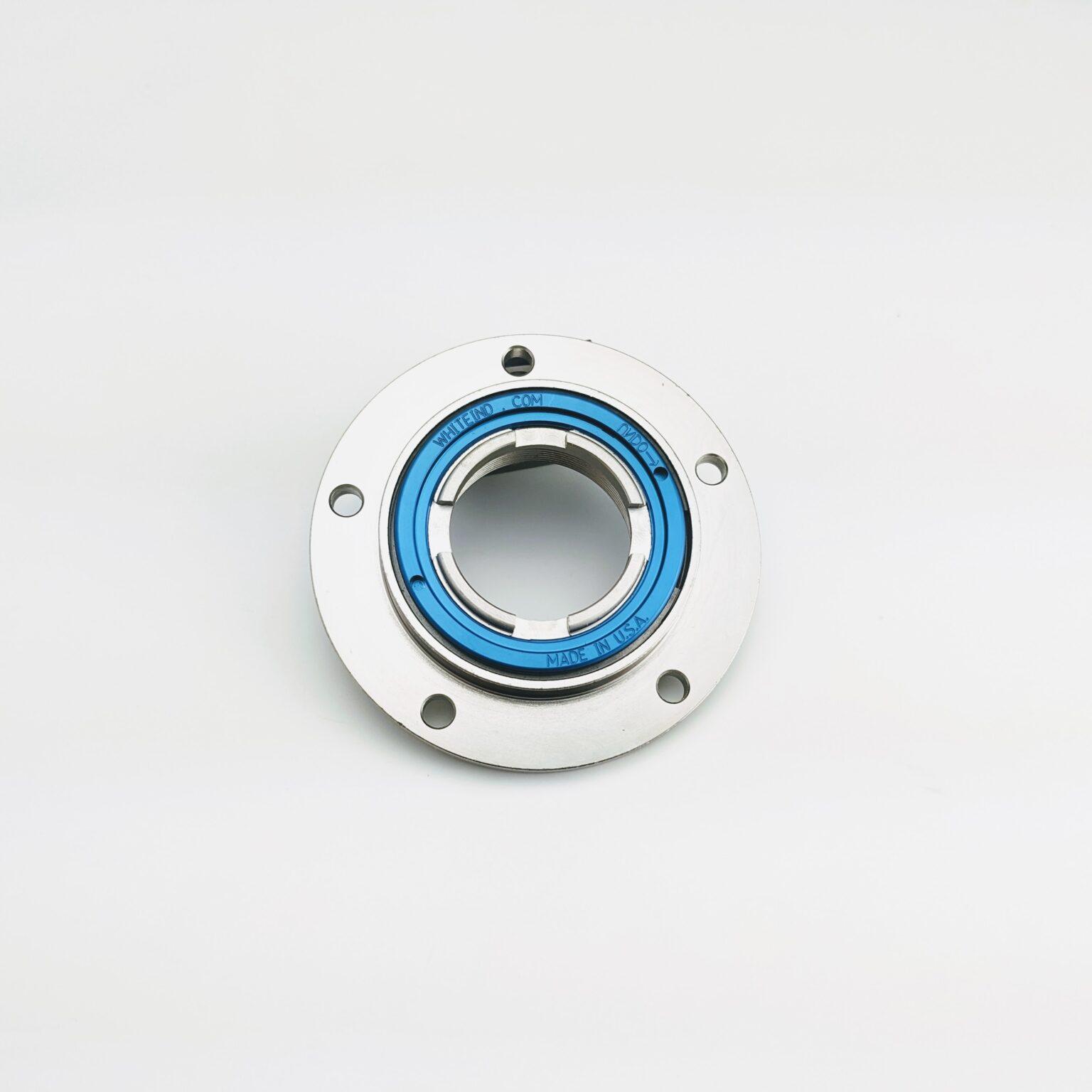

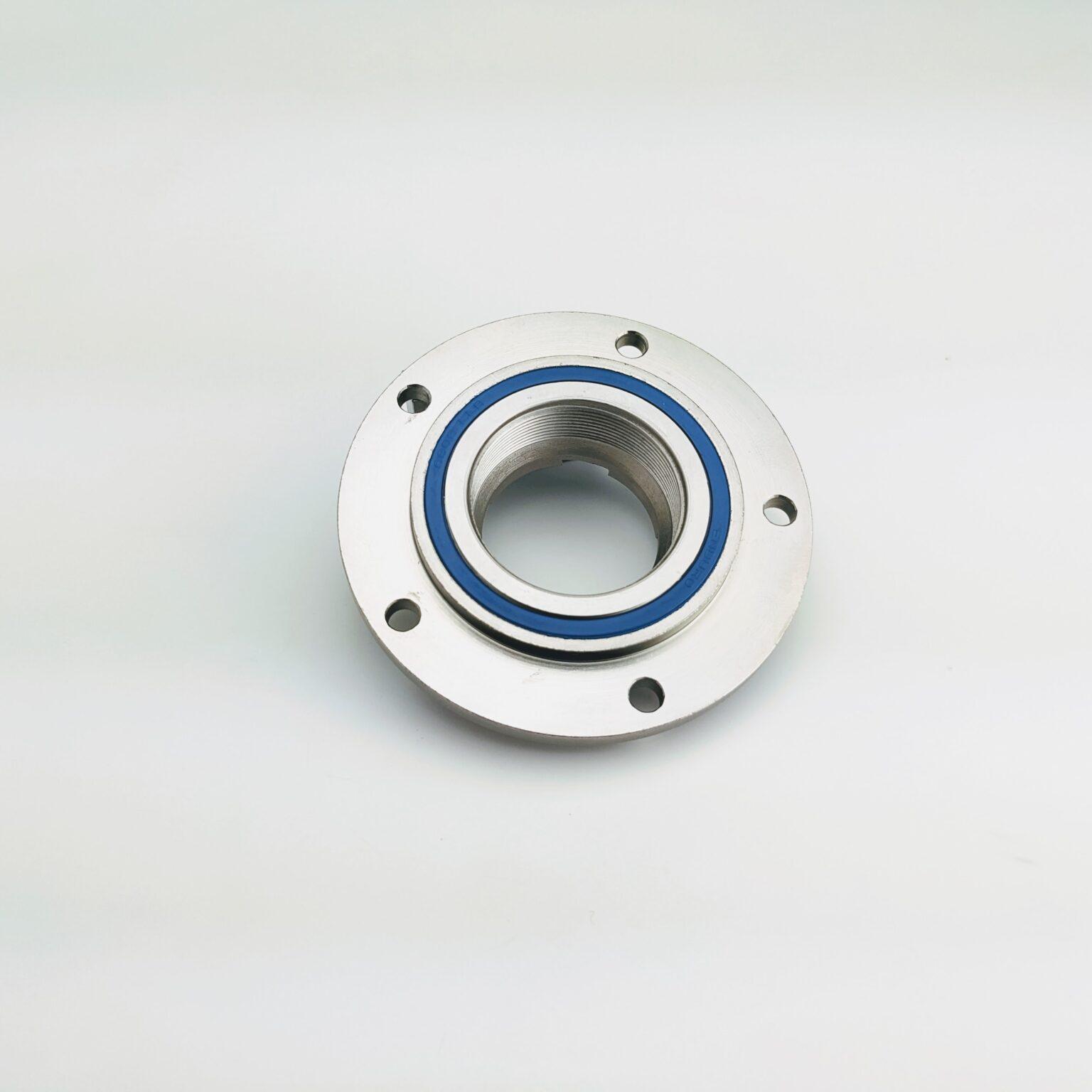

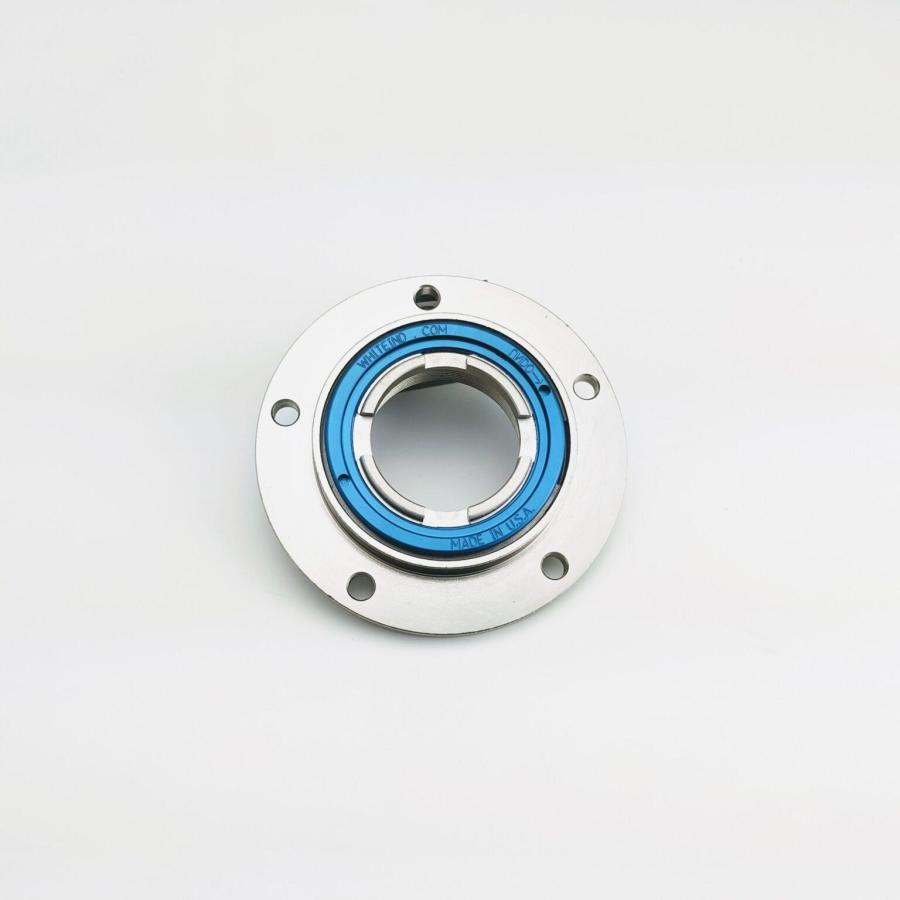

3 heat treated S7 tool steel pawls 36 points of engagement. FWSS567BL
Designed for E-Bikes that unitize a “Bottom Bracket Drive” system where the freewheel mounts to the motor output shaft. This freewheel requires a 5-bolt 67mm BCD “cog” to be mounted to it.
We have several types and number of teeth sprockets with the ID opened and the Five holes drilled to match this flange freewheel.

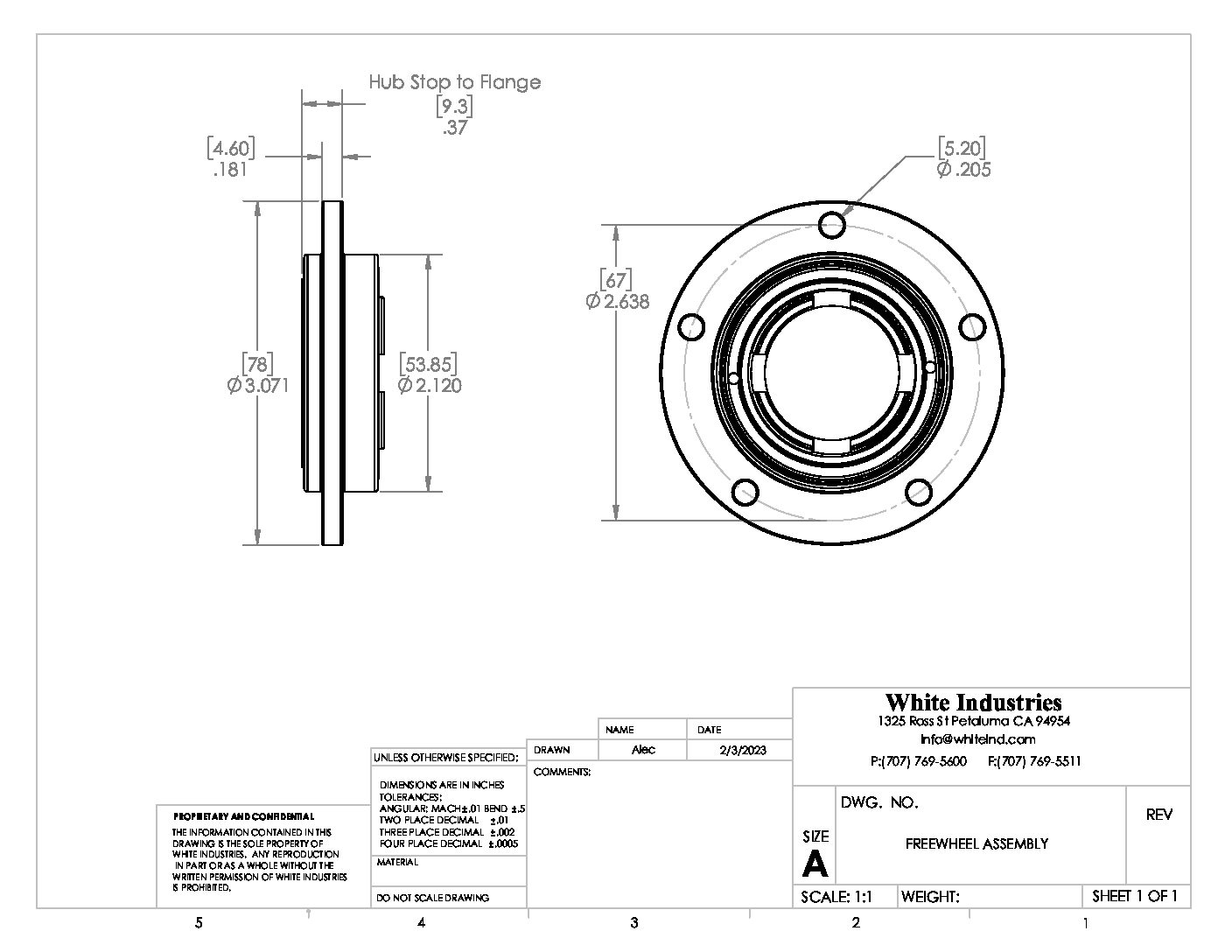

Specs
- 5-bolt pattern
- 67mm BCD (Bolt Circle Diameter)
- Threads: Right hand 1.370” x 24TPI
- Completely rebuildable
- Driver made from heat treated 4130 steel
- 3 heat treated S7 tool steel pawls
- 36 points of engagement
- Electroless nickel-plated outer gear
- Enduro chromium steel bearing with Mobil XHP222 extra high pressure grease
- Blue lockring only
Tools
- White Industries part #FWTOOLE 4-prong freewheel remover tool
- Works on other freewheels with 4-prong tool interface
- Park FR-6 4-prong freewheel remover tool will work on our freewheels
- Park SPA-2 (the red one) pin spanner needed to remove the freewheel lockring

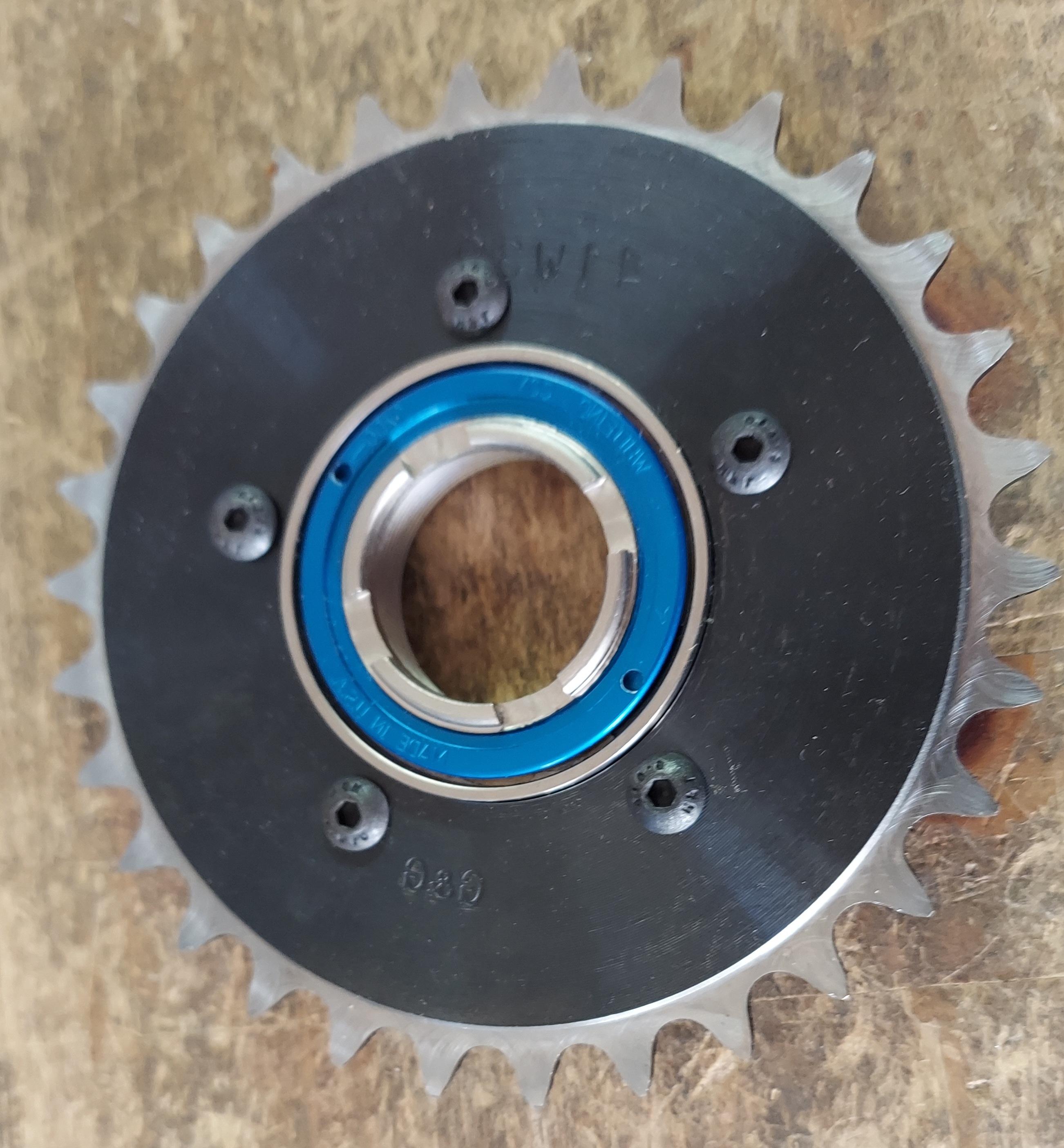

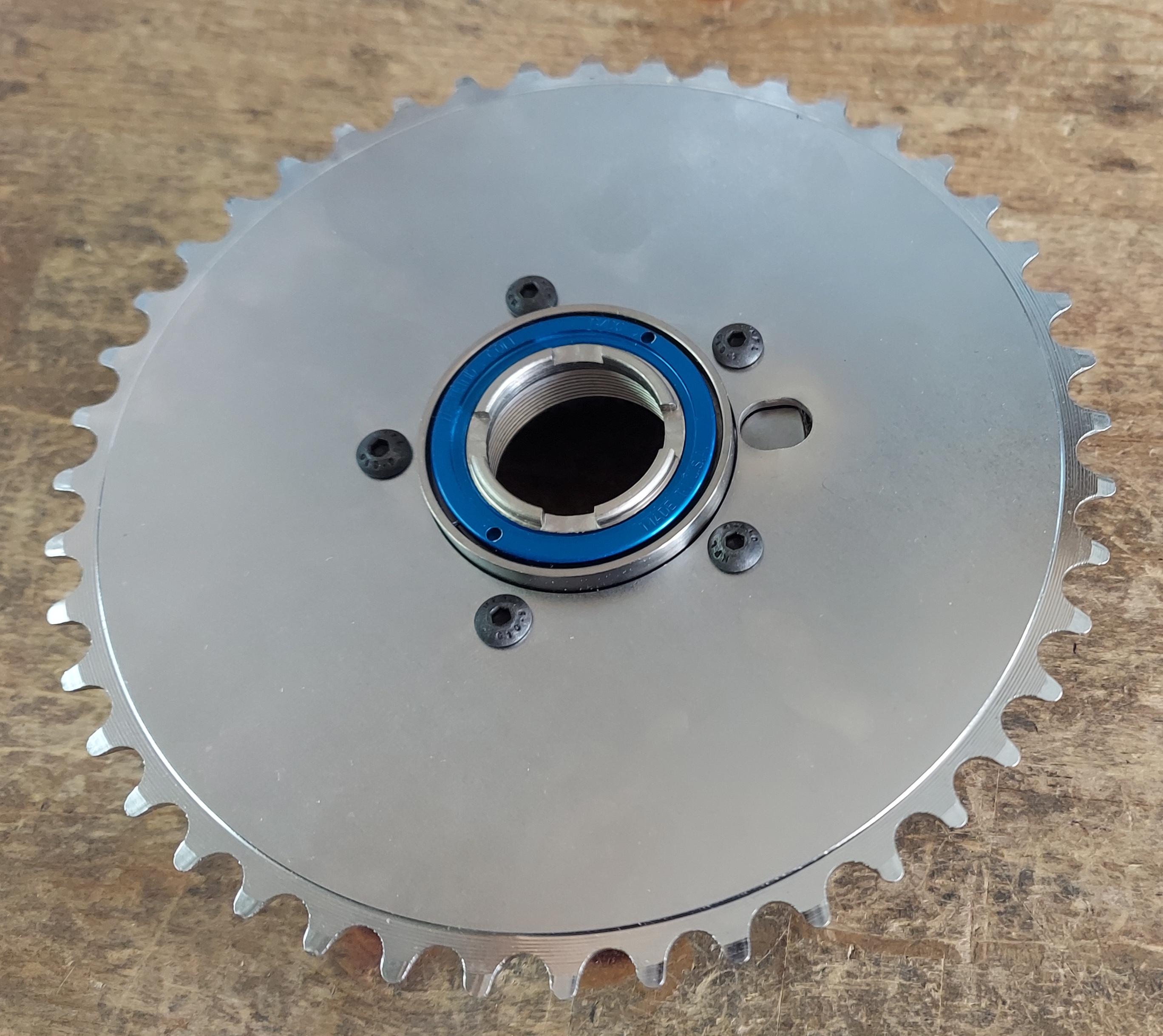

Made to attach many types of "A" sprocket to the flange to make a freewheel sprocket.
This flanged freewheel - sprag clutch allows you to attach a larger sprocket or pulley to make it freewheel.
Five: 5 mm x .80 threaded holes and Five: 5.28mm or .208" drilled holes.
If you want to order the hardware below be sure and add them to the order. You will need Five (5) of each part.
CLICK HERE to add the 5 mm Button Head screws.
CLICK HERE to add the 5 mm Hex Head Nylock Nuts.
You also can add one sprocket to each side of the flange giving you a 2 speed. Use a spring loaded idler to take the slack out of the chain. This is something you would stop and move the chain by hand to switch the ratio. You also will need the 25 mm long socket head cap screws and maybe Five 6 mm flat washers used as spacers to keep the sprockets apart so the chain clears.
