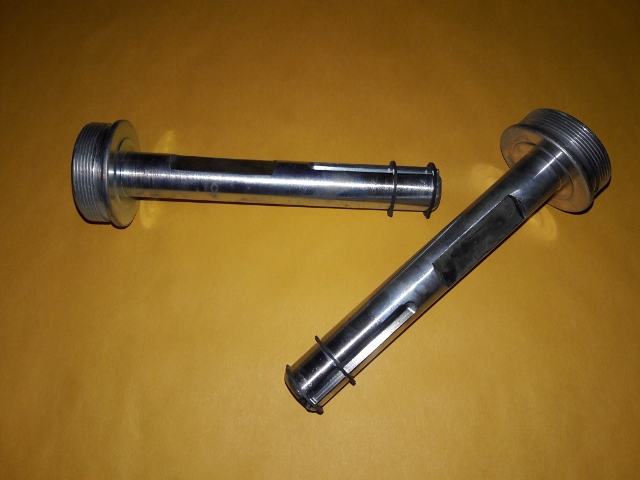

Jack Shaft 5/8" OD x 4-7/8" Over all length, Snap Ring Style

Product ID: 0231

Weight: 0.65 lbs

$26.95
~~$36.39~~

Product is out of stock

Jack Shaft 5/8" OD x 4-7/8" Over all length.

Works with 1.375 x 24 Right hand thread freewheels.

Note: This is for the jack shaft ONLY. Any other parts you need must be added to the order.

The 5/8" OD shaft is 4-12/32" to the outside snap ring grove.
The 2nd snap ring grove is 5/8" inward.
It has a 3/16" x 1-3/4" long keyway.
The two flats are cut to help remove the freewheel. Place the two flats in a bench vise or hold witha 15 mm open end wrench.

Used to get reduction and / or move the drive more towards the LEFT of the driven freewheel.

Support this with 5/8" Bearings or drop out of a bike.

You can add a solid sprocket or place a freewheel adaptor or use a Three prong sprocket / adaptor and freewheel.
Be sure and order a 5/8" Ext snap ring and it will act as a safety to hold the sprocket on and retain the key if the set screws come loose on the sprocket.

Be sure and order the 5/8" External Snap Ring (s) if you need them. The link is below.
5/8" External Snap Ring

Made out of 12L14 steel and Zinc Plated.
