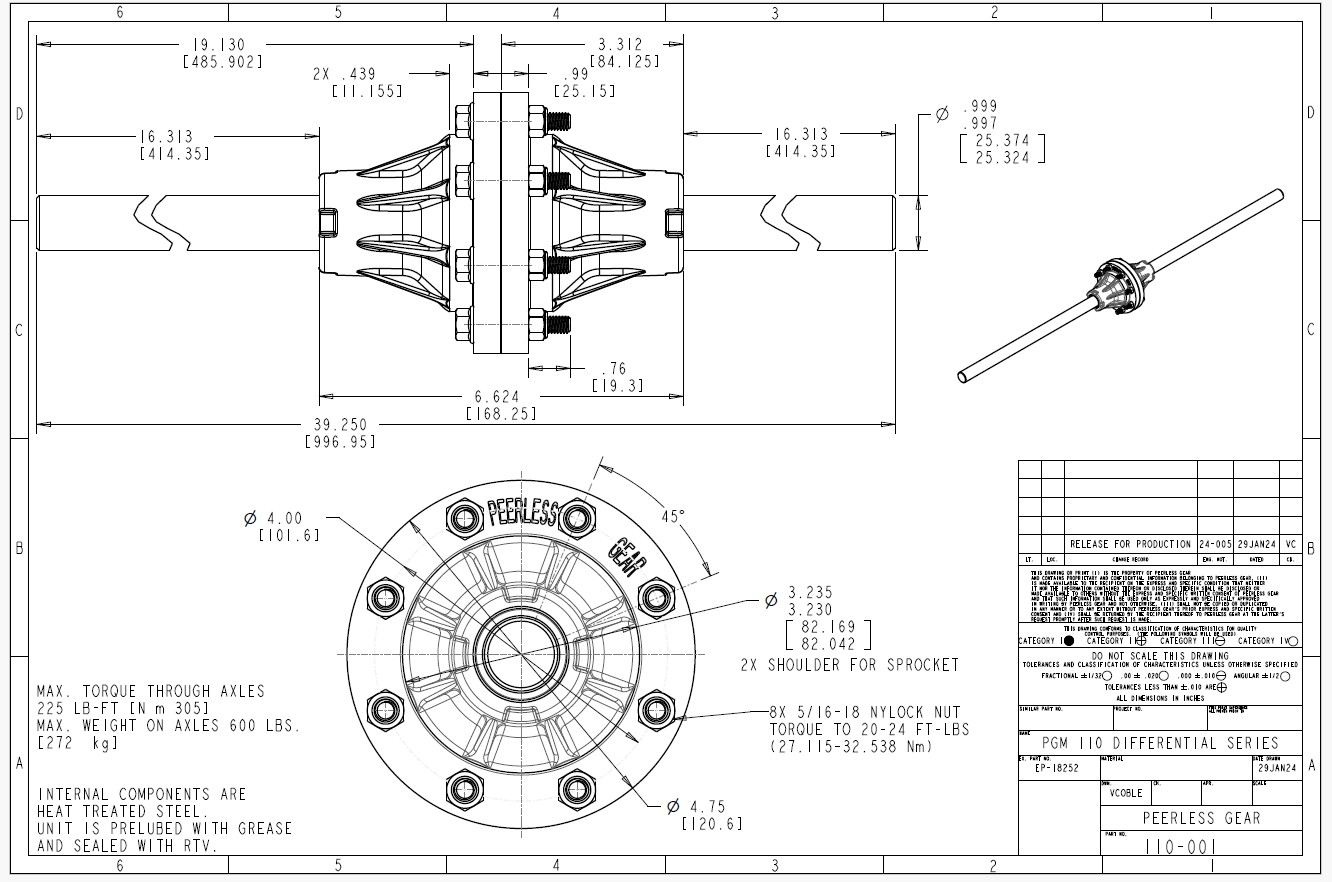

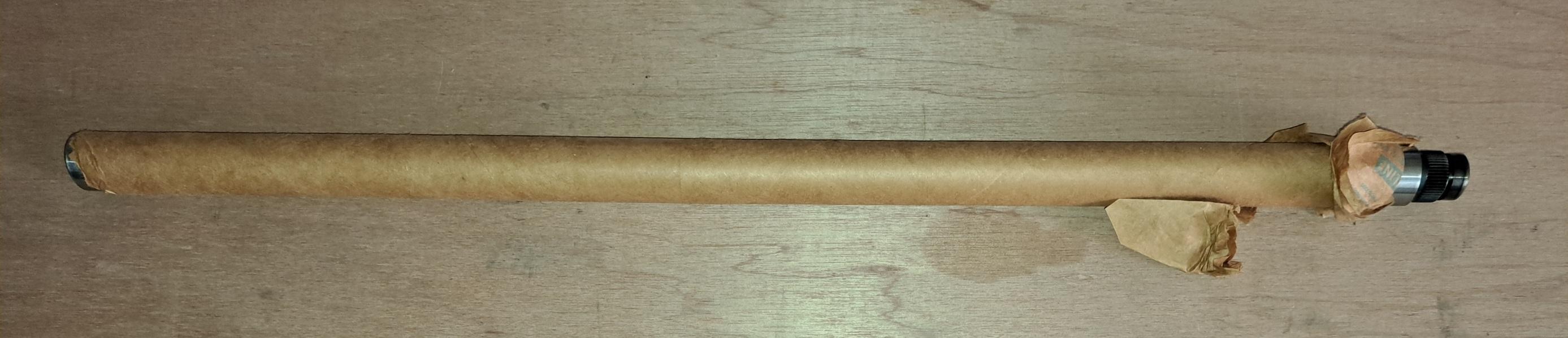

Differential Peerless KIT, 1" x 49.624" long. This is a

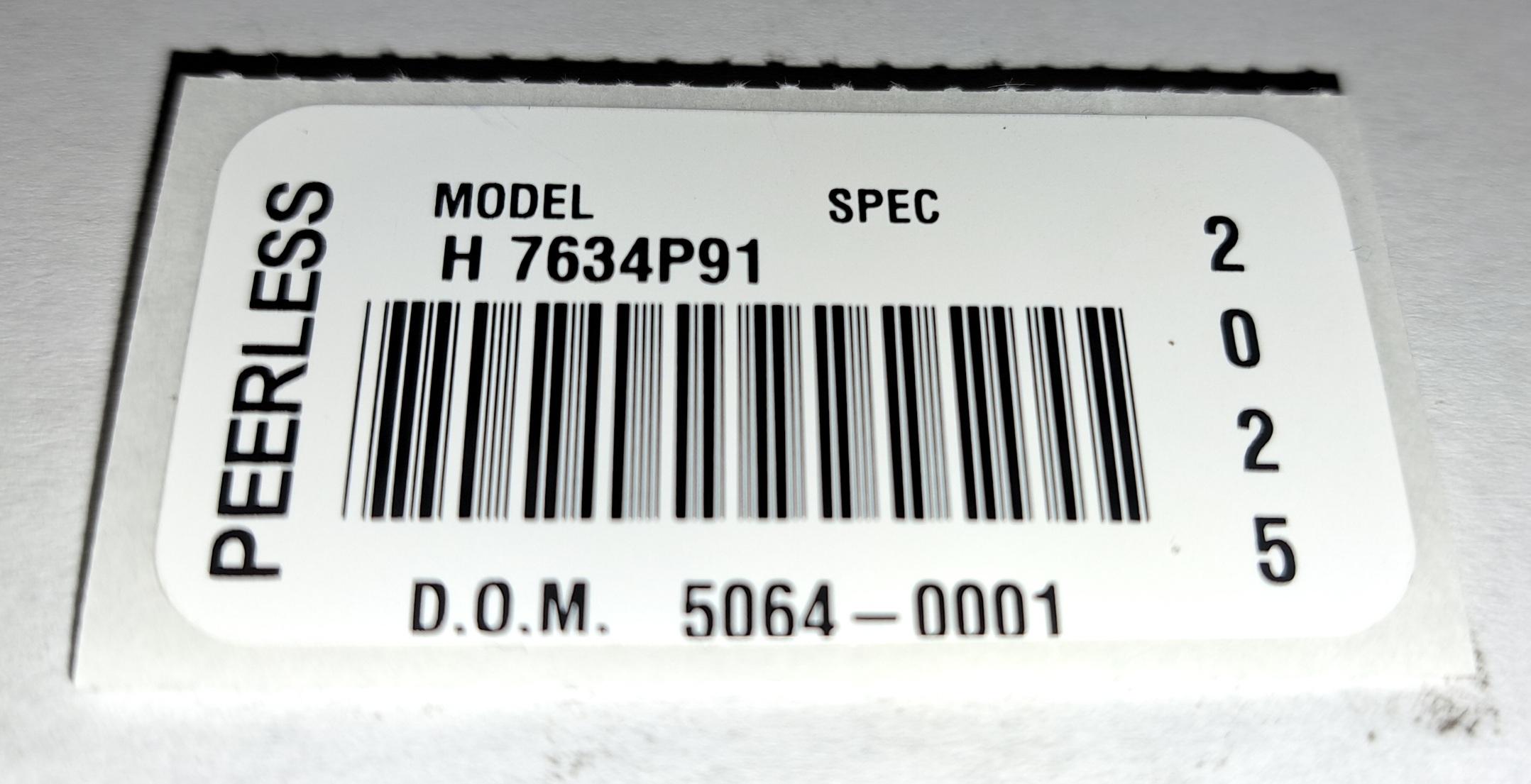

KIT for Model # 110-001 with a service # of 7634P91

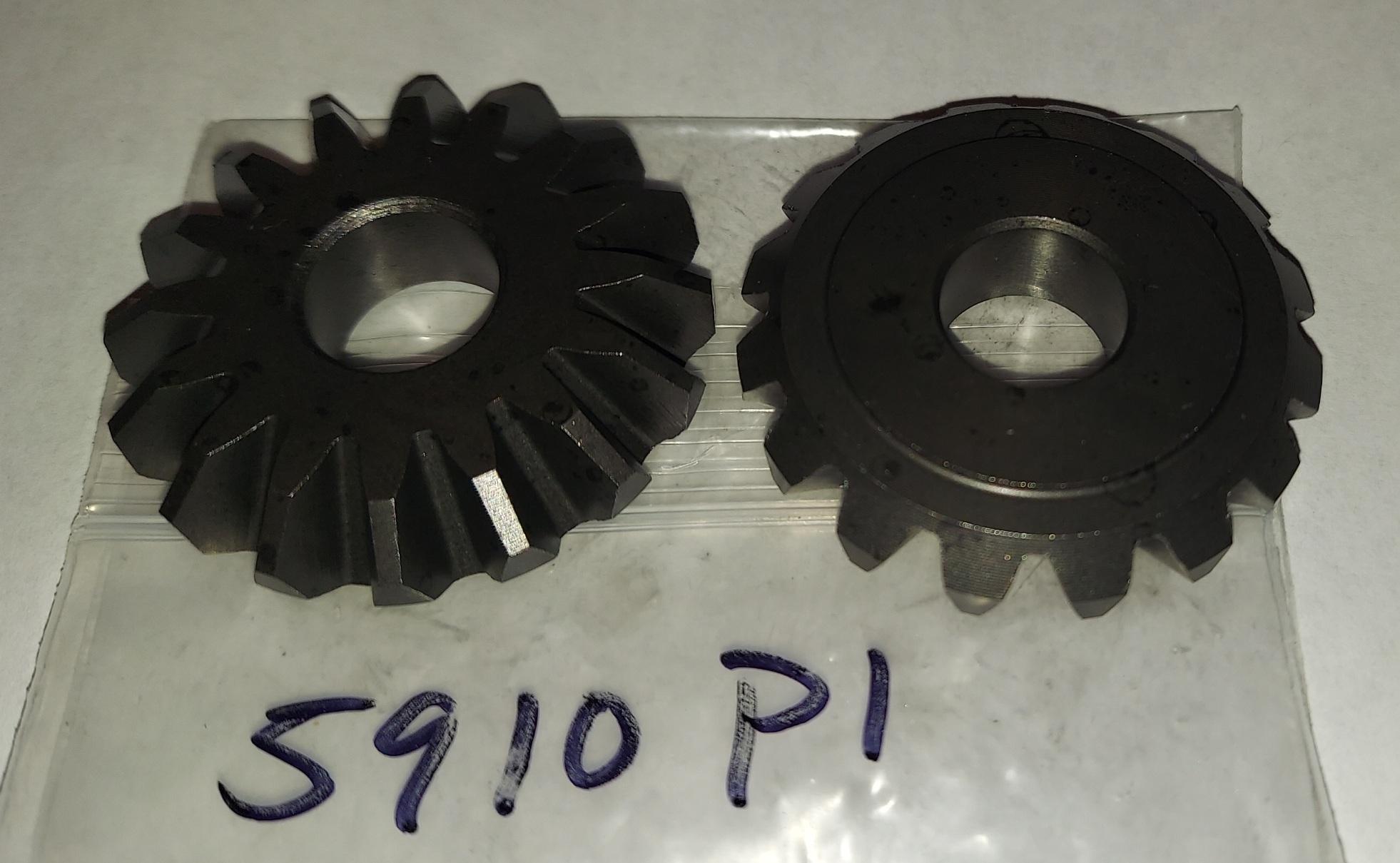

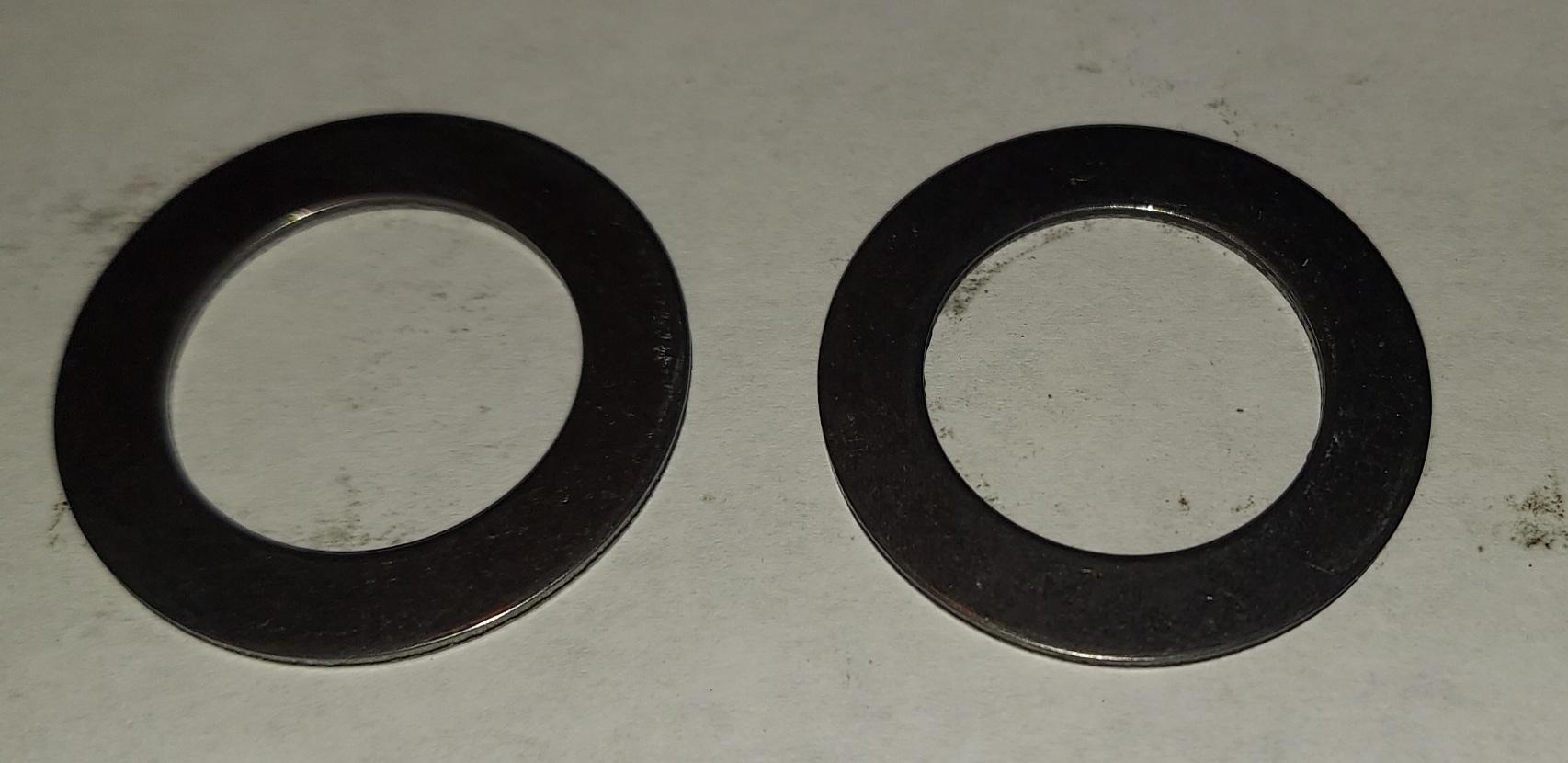

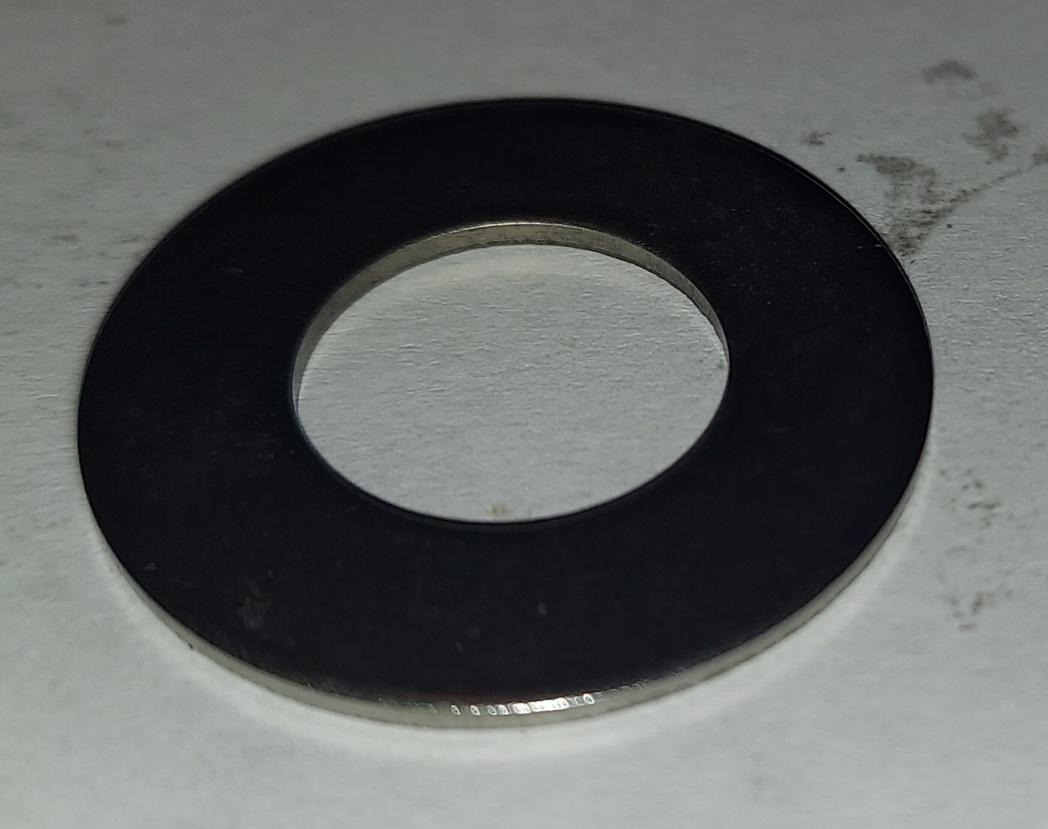

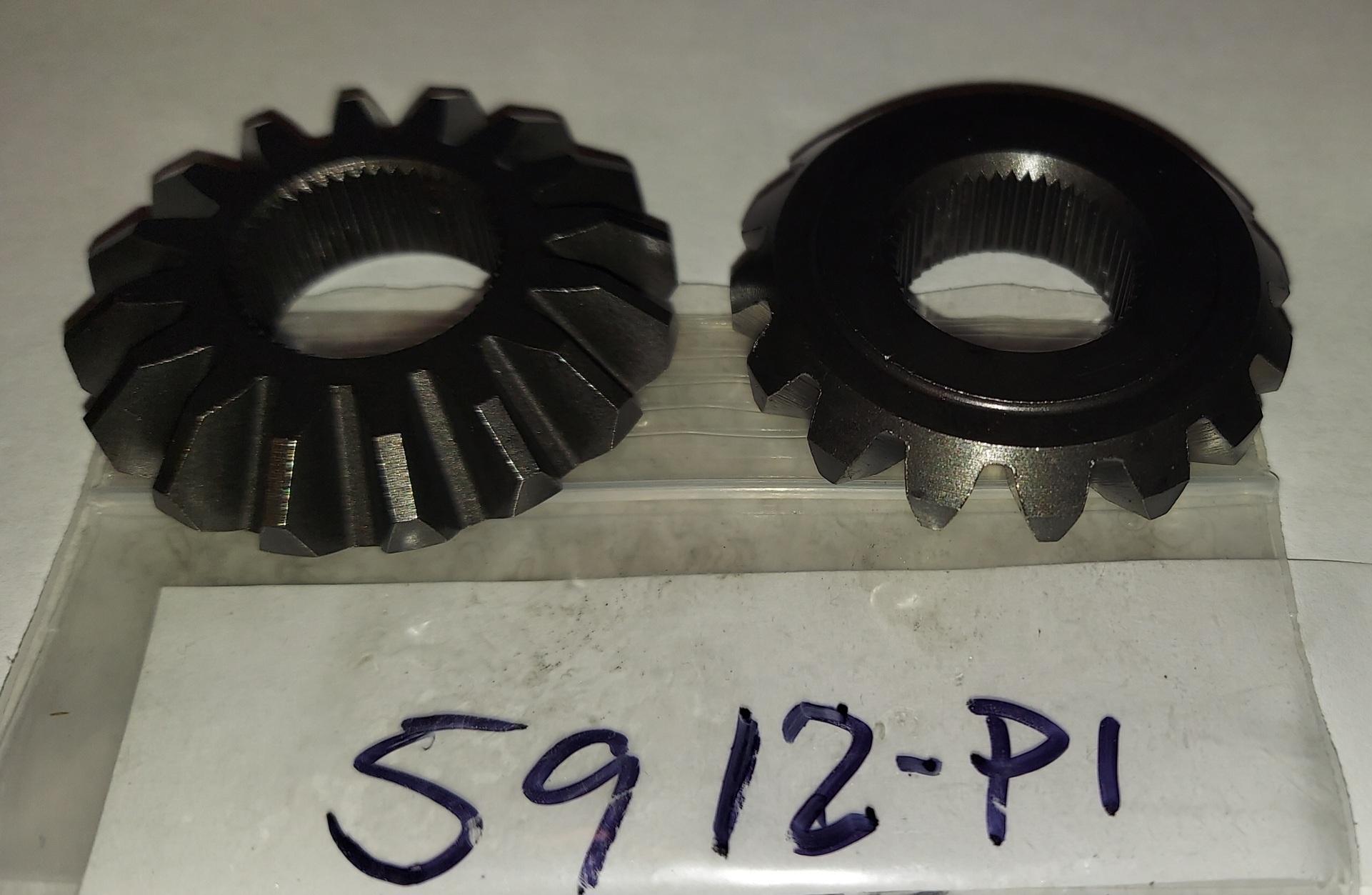

No keyway's, holes or threads. This is a complete differential

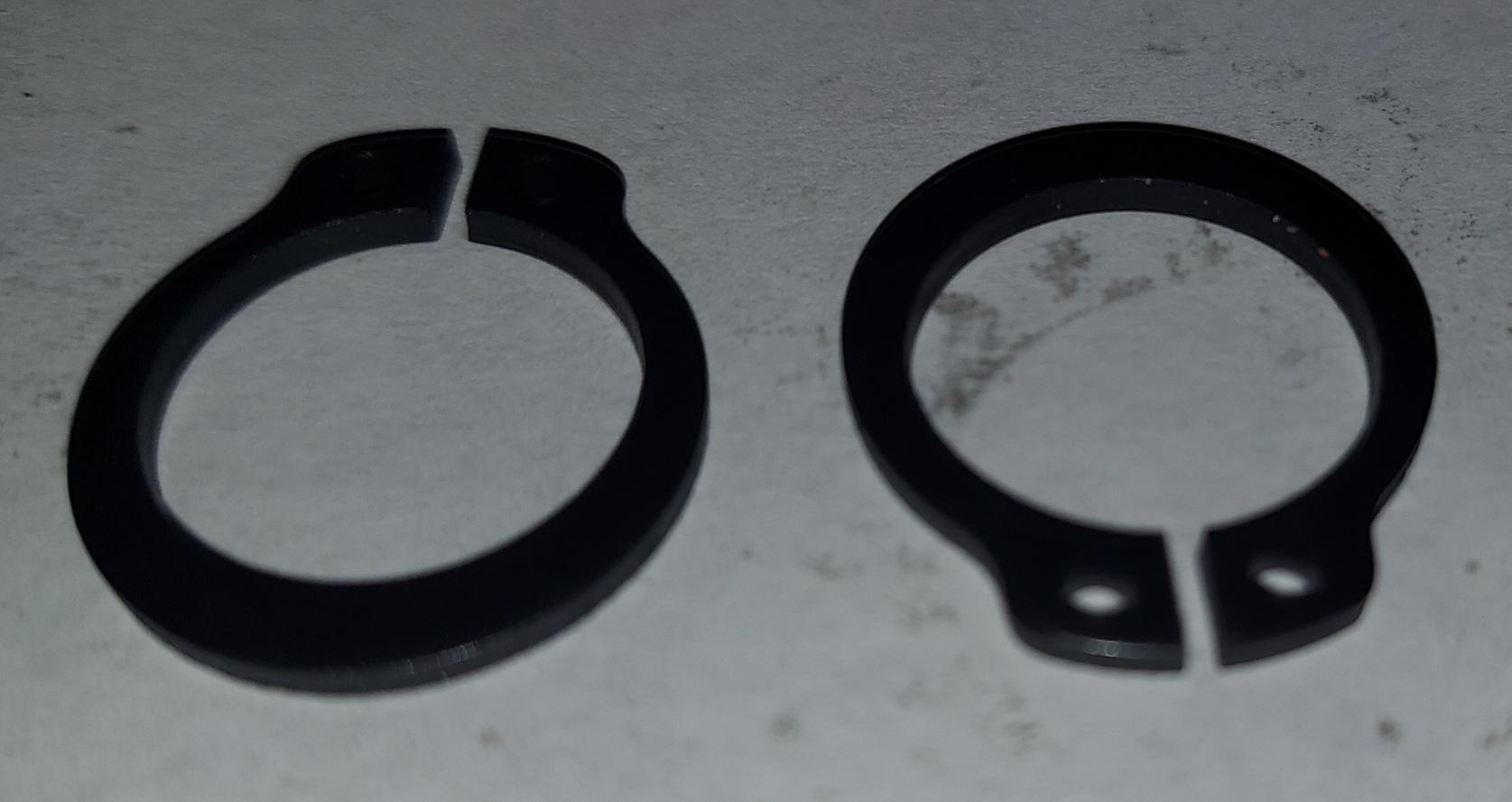

Unassembled.This "KIT" makes it a lot easier to CNC machine the shafts adding keyways, snap ring groves or a threaded ends.
You will need to buy: LOCTITE 5699 RTV Grey High Performance Silicone Gasket Maker - High Performance, Oil Resistant, High Torque Applications - 80 ml, 1 Pack.
You will also need to buy: one of the following:
BENTONE #2 GREASE EXTREME PRESSURE, CLAY THICKENED GREASE 14 oz tube. Can be used in Peerless Differentials.
Peerless Bentonite Grease 788067 788067C Tecumseh 32 oz?" wide with the center parts of the hub being ?" wide.
Specifications
Output torque 150 lb-ft / 203.37 Nm

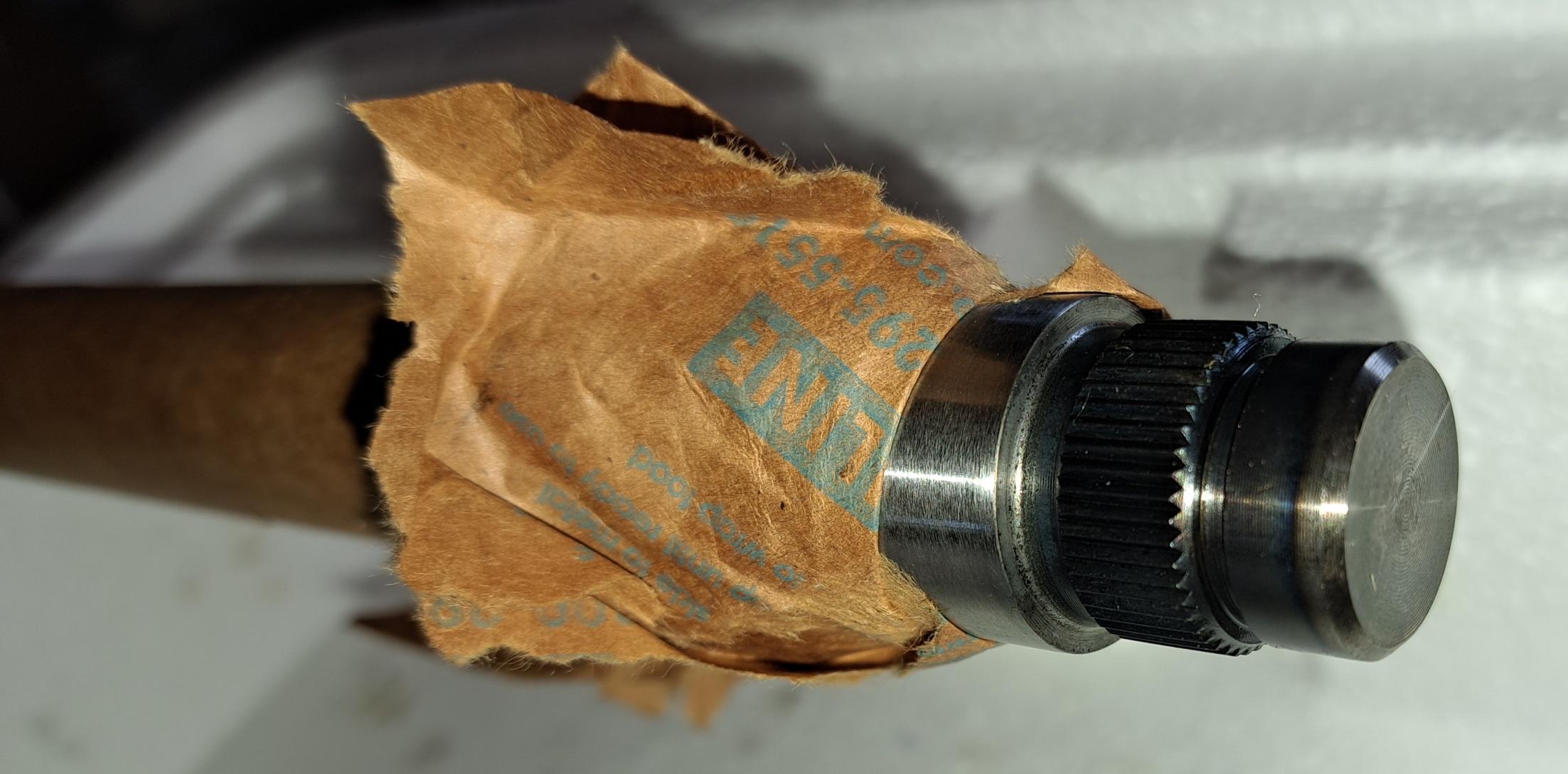

Rear axle diameter 1" inch
Weight on axles 600 lbs / 181.44 kg
Axle bearings Bushings
Axle ends and length Application Specific. Contact factory for available models.

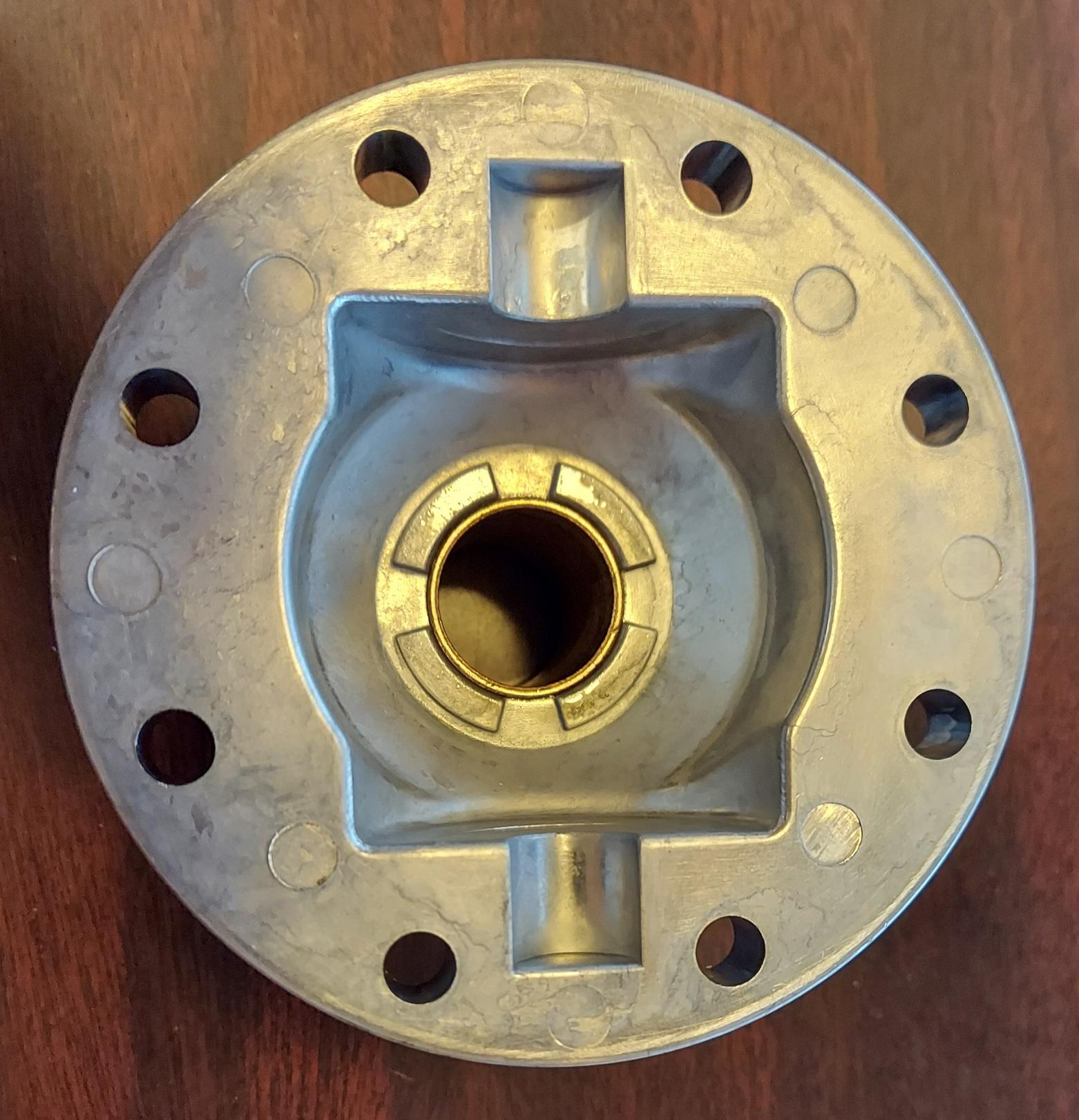

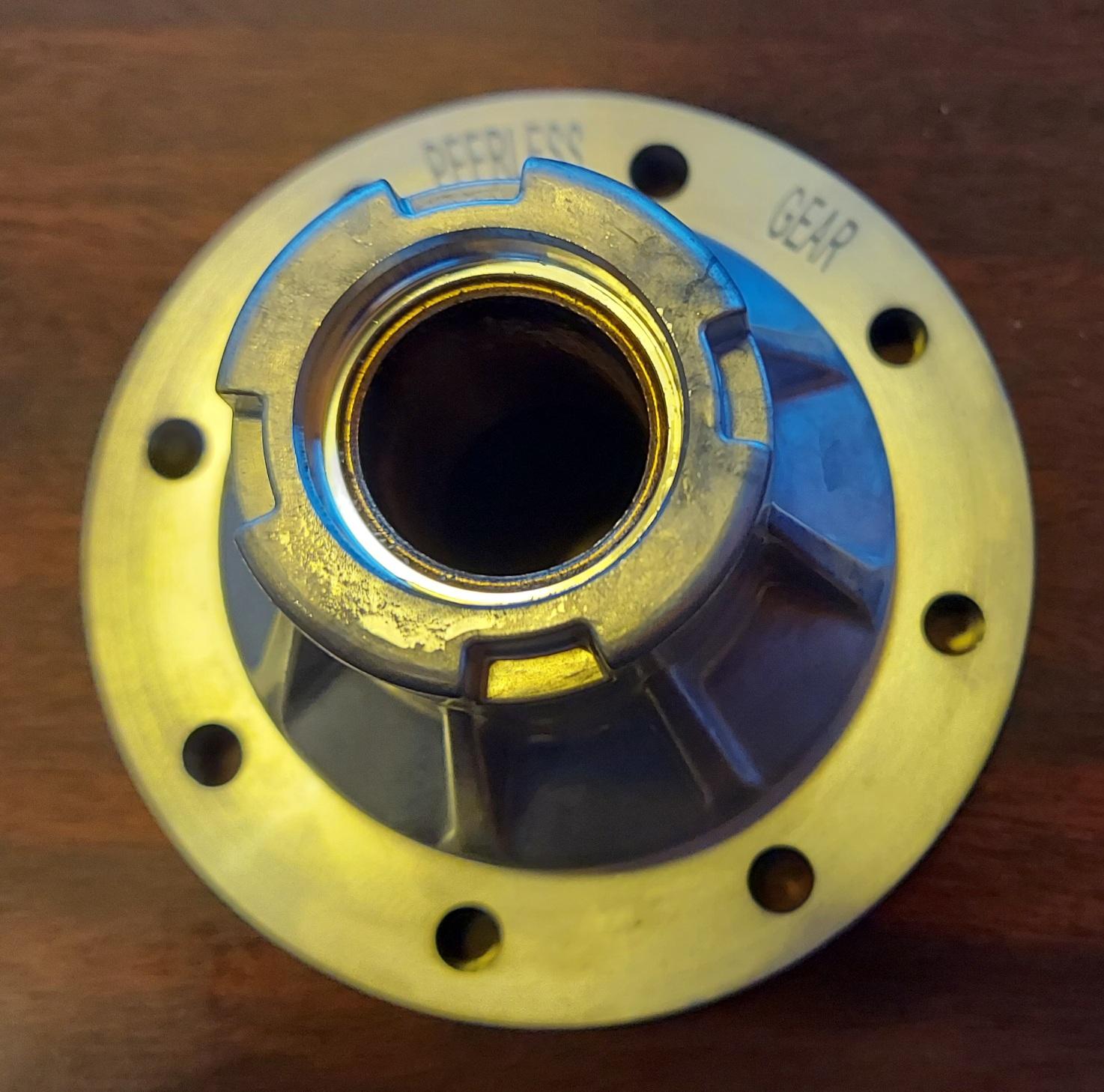

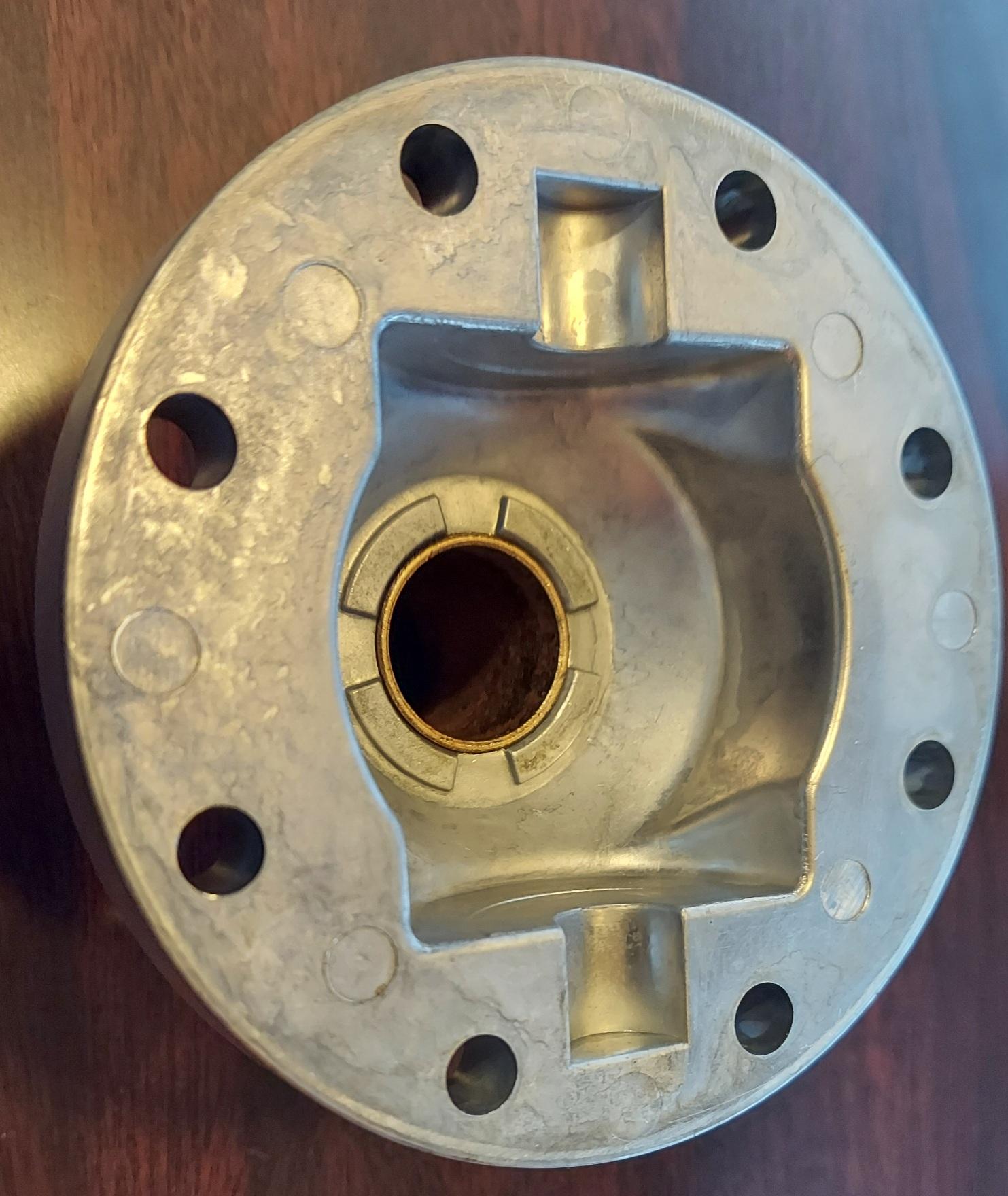

Differential housing Die Cast Aluminum.
Mounting Application Specific. Contact factory for application specific information.
Weight ? lbs / 4.54 ? kg
Sprocket type Consult factory
Model Number Description
1" Diameter Axles
15 lbs.
