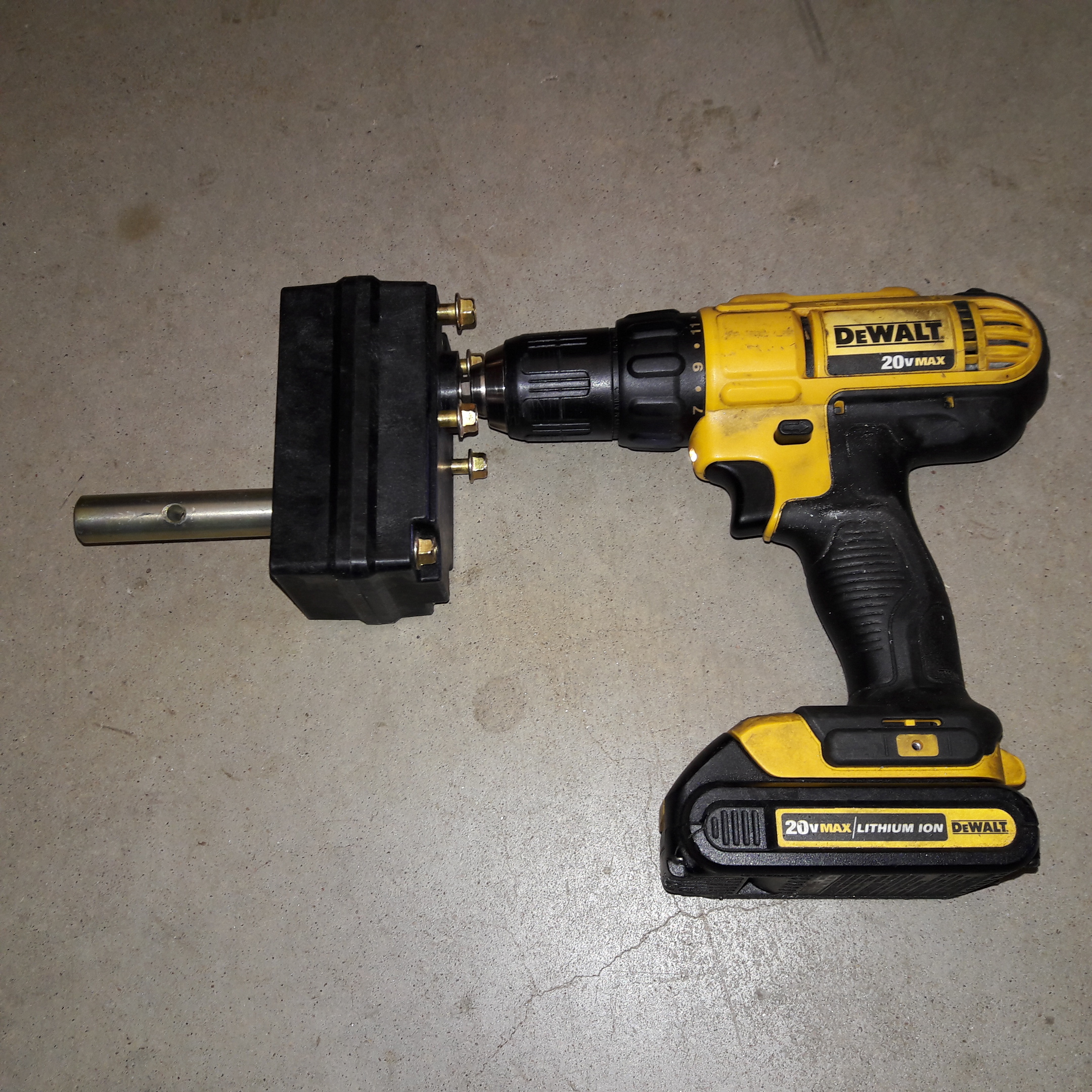

2 to 1 Gear reduction box with idler gear so the input and 18 mm output shaft turns the same direction. Note: We also have a 5/8" shaft version Product ID: 3450
Use your drill to power this. NOTE: The Drill is NOT included.
You can motorized all types of products. You can make a powered kit for Trikes, Bikes, Scooters, carts and more.
Great for kids or light weight needs or short distances or light loads powered by YOUR drill.
Using your own cordless drill or electric motor.
The Hex shaft is the Input shaft.
Be sure and order this adaptor if needed: 18 mm ID x .9" wide Adaptor for freewheel Sprockets
You can add a 16 tooth or larger freewheel sprocket with 1.375 x 24 RH threads.
Or use a solid sprocket like a track Cog with 1.375 x 24 right hand threads.
Be sure and order the Lock Ring with the track Cog so it do not back spin off.
Be sure and order the below if needed.
15 Tooth 1/2" x 3/32" Sprocket Track Cog with 1.37 x 24 ID threads DICTA
We also have other sizes, see the web site.
Has Ball bearings on the output shaft.
Output shaft is: 18.06mm or .711" ODOutput shaft is: 3.12" or 79.23 mm longHole in shaft is .247", 1.5" from the end.Box Width is: 2.73"Box Length is 4.75" Box Thickness is: 2.30"Input Hex flat to flat is: 0.383"Input Hex edge is: 0.427"
No warranty and No return.
NOTE: The Drill is NOT included. Actual shipping weight is: 2.55 lbs.
If you are out of the lower 48 states or order several your shipping cost may be higher and we will contact you.
