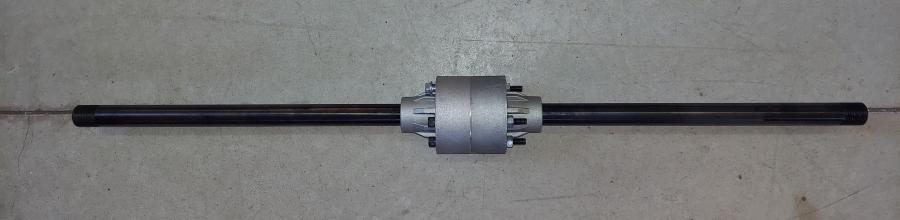

35 inch length 1" OD, 1/8" keyway differential assembly for Pedicabs, trike & motorized wheelbarrow
Product ID: 801835
Weight: 18.00 lbs
Price:
$69.00
$179.00
Volume Pricing
2 - 5
5% off
5% off
6 - 20
10% off
10% off
21 - 42
15% off
15% off
35" long 1/8" keyway only, Differential assembly. They are made of a die cast aluminum differential case with 1215 cold drawn steel axle shafts that have black oxide coating. Product ID: 801835
Be sure and order TWO (2) of the axle nylock nuts (these are hard to find as well) linked below and this will ensure that the threads are not damaged in shipping.

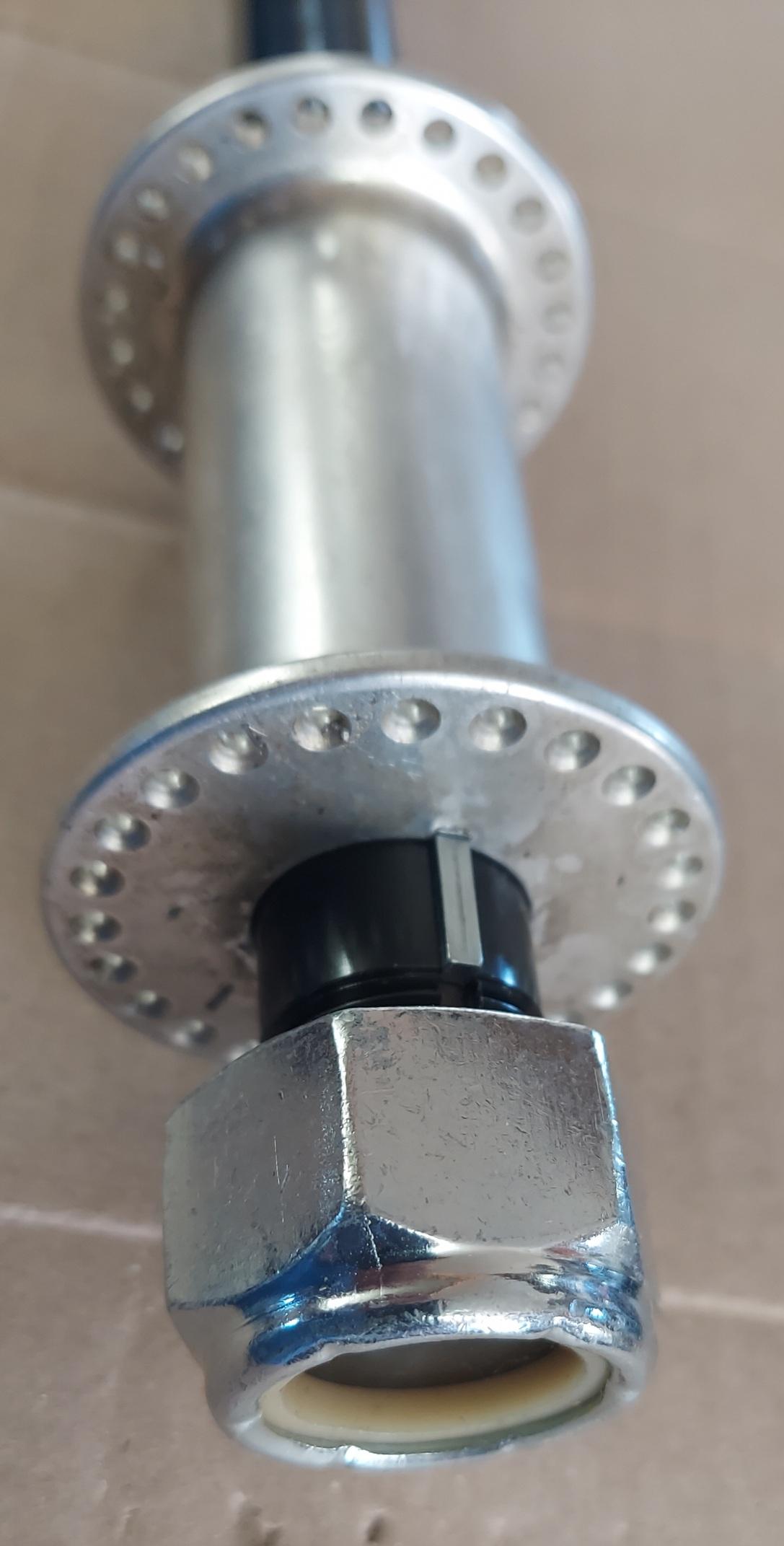

1-14 N.E. REGULAR HEX NYLON INSERT LOCK NUT PLATED ZINC CLEAR
Details:
Axel Dia: 1"
Axel overall length: 35”
Axel Lengths to disc brake rotor: 16.377" and 18.623"
Axel Threads: 1"-14 TPI x 1"

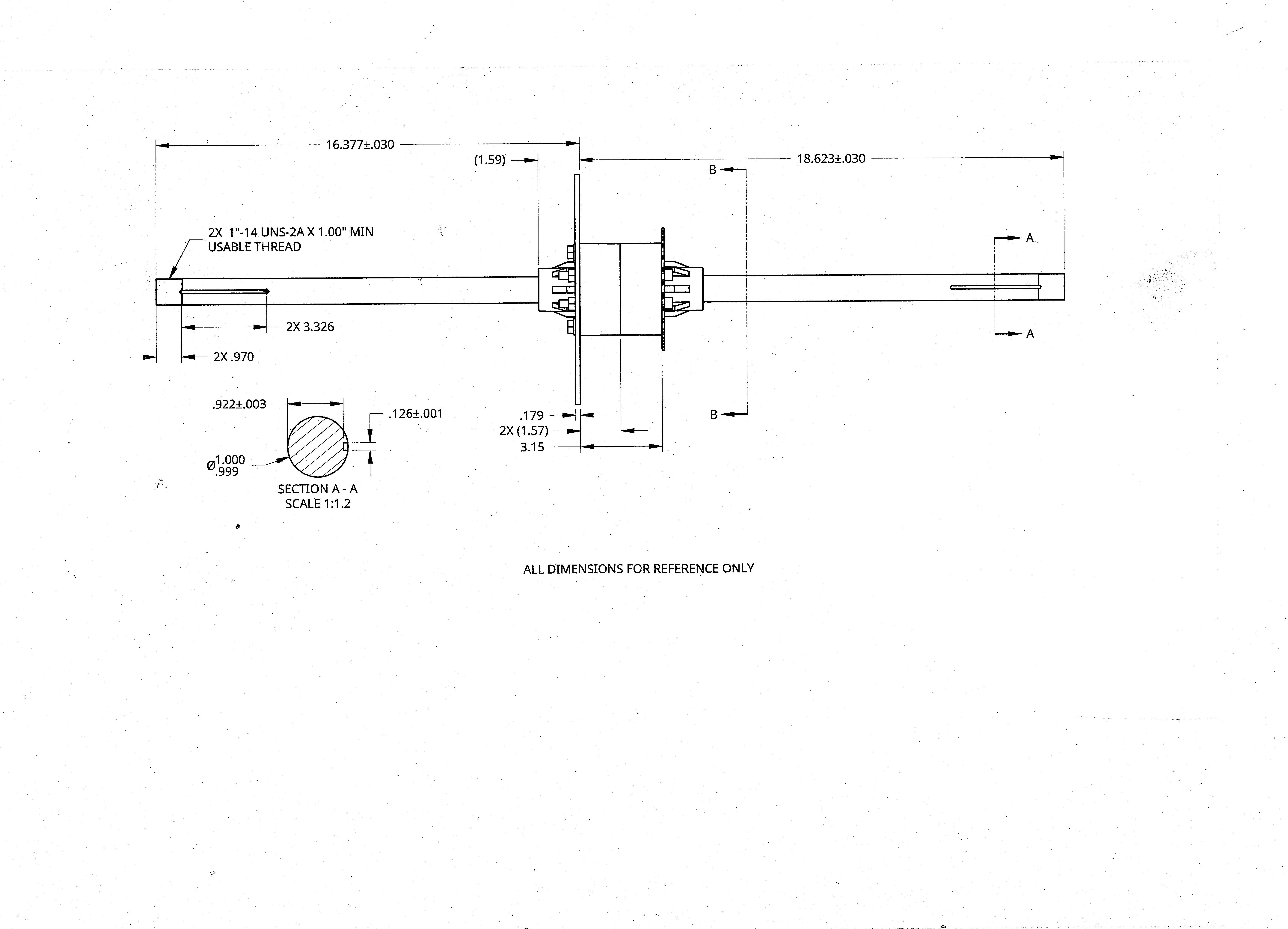

Keyway: 1/8” x 3.325" long keyways on both axels. See reference sheet
Four thru holes and two threaded holes on one side of the hub.
Bolt Holes Four 0.35" dia. for 5/16-18 stud

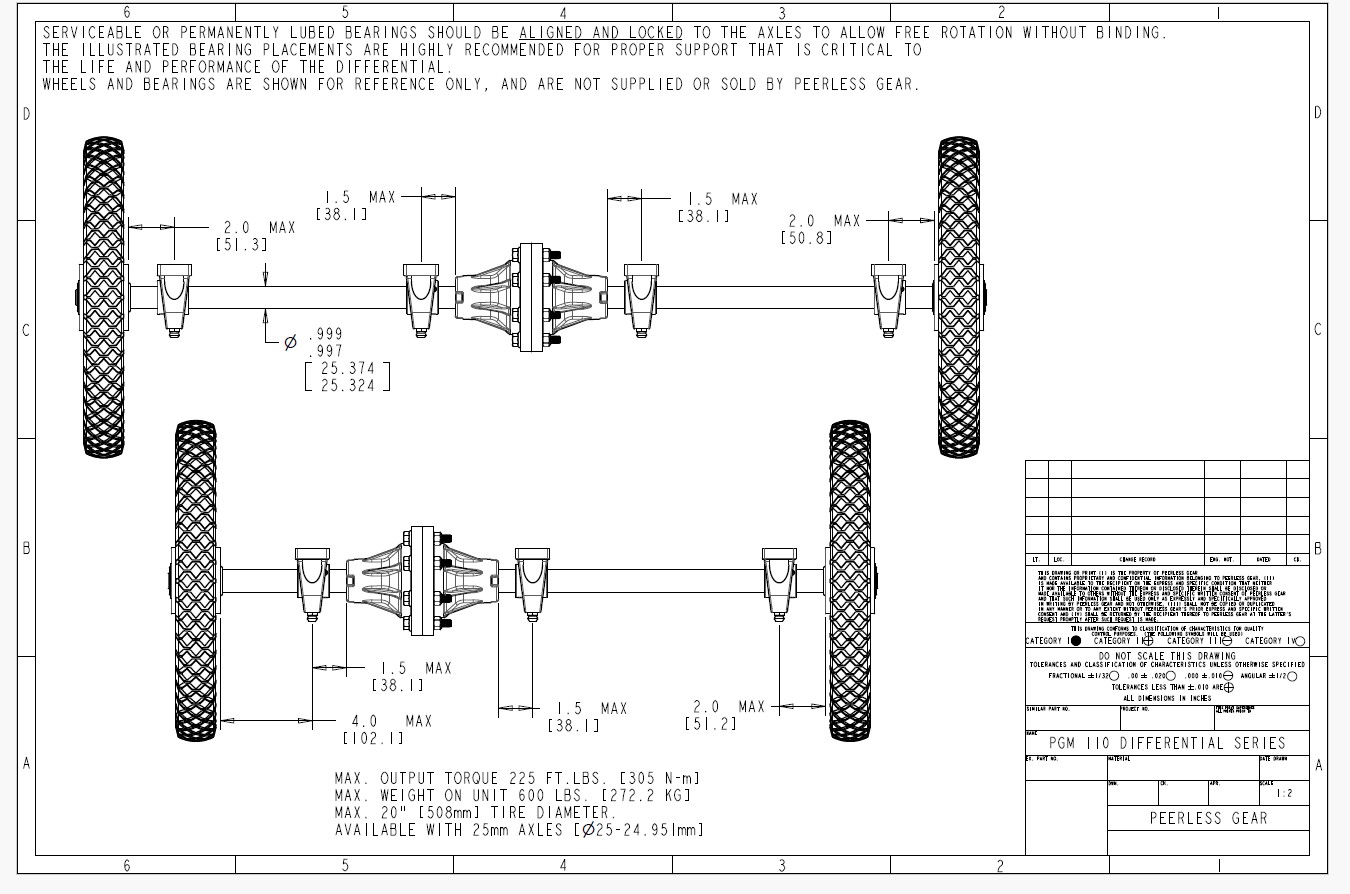

Bolt Hole Pattern 0.941" x 2.81" Note: Make sure you order the correct sprocket and disc brake rotor if needed as this is a DIFFERENT bolt pattern than the Peerless Brand differentials.
NOTE: The bicycle hub with the 1/8" keyway and nylock nuts are NOT included with the differential.
Shipping Wt.: 16 lbs. Net weight: 11.10 lbs
Note: The differential may be taken apart so it will fit in a smaller box to reduct shipping cost.
Be sure and order TWO (2) of the axle nylock nuts (these are hard to find as well) linked below and this will ensure that the threads are not damaged in shipping.
1-14 N.E. REGULAR HEX NYLON INSERT LOCK NUT PLATED ZINC CLEAR
Details:
Axel Dia: 1"
Axel overall length: 35”
Axel Lengths to disc brake rotor: 16.377" and 18.623"
Axel Threads: 1"-14 TPI x 1"
Keyway: 1/8” x 3.325" long keyways on both axels. See reference sheet
Four thru holes and two threaded holes on one side of the hub.
Bolt Holes Four 0.35" dia. for 5/16-18 stud
Bolt Hole Pattern 0.941" x 2.81" Note: Make sure you order the correct sprocket and disc brake rotor if needed as this is a DIFFERENT bolt pattern than the Peerless Brand differentials.
NOTE: The bicycle hub with the 1/8" keyway and nylock nuts are NOT included with the differential.
Shipping Wt.: 16 lbs. Net weight: 11.10 lbs
Note: The differential may be taken apart so it will fit in a smaller box to reduct shipping cost.
