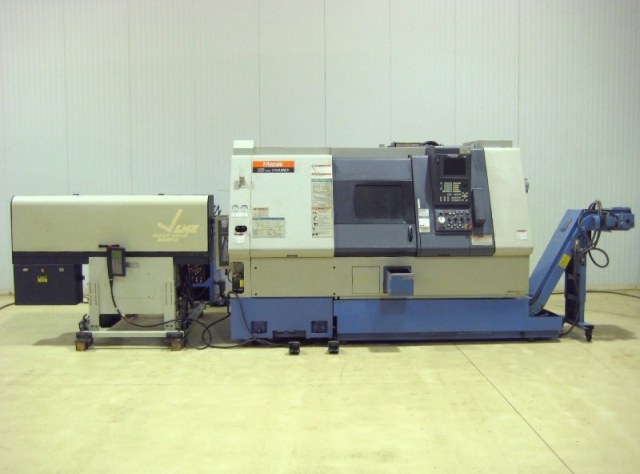

MAZAK SQT-200 MSY CNC Lathe, Live Tool Sub Y Axis with Bar Feeder

MAZAK SQT-200 MSY CNC Lathe, Live Tool Sub Y Axis with Bar Feeder.

This New Lathe allows us to do all our CNC turning in house.

We also will do some out side work - job shop machining when the lathe is not needed for our products.

This is the largest machine both in cost and weight to date that we have bought.

We had to hire a Crane unload the 19,200 pound MAZAK Lathe.

NOT FOR SALE

MAXIMUM SWING 20.67"
MAXIMUM TURNING DIAMETER 11.81"
MAXIMUM TURNING LENGTH 20.87"
X AXIS TRAVEL 7.125"
Y AXIS TRAVEL 4" +/- 2"
Z AXIS TRAVEL 22.625"
B AXIS TRAVEL (SUB SPINDLE) 23"
RAPID TRAVERSE RATE X & Z AXES 1181 IPM
RAPID TRAVERSE RATE B AXIS 708 IPM
MAIN SPINDLE NOSE A2-6
MAIN SPINDLE BORE 2.44"
MAIN SPINDLE BAR CAPACITY 2.1"
SPINDLE MOTOR 25 HP
MAIN SPINDLE SPEEDS 35 - 5,000 RPM
TURRET CAPACITY 12 STATION TURRET
SUB SPINDLE NOSE A2-6 SUB
SPINDLE SPEEDS 35 - 5,000 RPM
SUB SPINDLE MOTOR 10 HP
LIVE MILL SPINDLE SPEEDS 25 - 4500 RPM
LIVE MILL SPINDLE MOTOR 5 HP RS-232C
PORT INTERFACE FOR DNC OPERATION,
ROYAL 16C ACCULENGTH COLLET CHUCK ON MAIN SPINDLE,
6.5" KITAGAWA B-206 3-JAW CHUCK ON SUB SPINDLE,
LNS QUICK LOAD SERVO 4' MAGAZINE BAR LOADER SYSTEM,
TOOL EYE (AUTOMATIC TOOL PRESETTER ARM),
LIVE TOOLING, SUB-SPINDLE, Y-AXIS TRAVEL,
AUTO PARTS CATCHER, EXTERNAL CHIP CONVEYOR,
HIGH PRESSURE COOLANT SYSTEM
(5) LIVE TOOL HOLDERS (2 RADIAL, 3 AXIAL)
