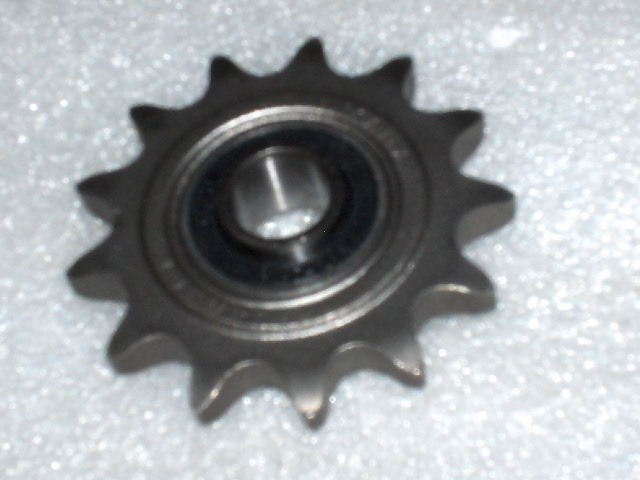

50 BB 13 Tooth 5/8" ID IDLER Sprocket with Precision Ground Bearing, shielded and sealed on both sides for maximum life.
Look at 5013 for more info.
Idler Sprockets
 |
Furnished with Hardened Teeth
Stock
No. |
Chain
Size |
No.
Teeth |
Bore |
A |
B |
Wt.
Lbs. |
03518E08
03518E10
04017E08
04017E10
05013E08
05013E10
05015E08
05015E10
05017E08
05017E10
06011E08
06011E10
06013E08
06013E10
06015E08
06015E10
*08011012
*08012012
08011E12
08012E12
*10010016
10010016E |
35
35
40 or 41
40 or 41
50
50
50
50
50
50
60
60
60
60
60
60
80
80
80
80
100
100 |
18
18
17
17
13
13
15
15
17
17
11
11
13
13
15
15
11
12
11
12
10
10 |
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
1/2
5/8
3/4
3/4
3/4
3/4
1
1 |
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
7/16
9/16
9/16
9/16
9/16
11/16
11/16 |
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
9/16
9/16
13/16
13/16
11/16
7/8 |
.25
.25
.44
.44
.38
.38
.56
.50
.69
.63
.50
.50
.69
.69
.94
.88
1.06
1.70
1.08
1.72
1.50
1.52 |
* With Flat Inner Race
Maximum recommended RPM = 1000
Radial load capacity = 621 PSi @ 100
RPM based on 2500 Hrs. average life.
|
| BUSHINGS AND BEARINGS |
Stock
No. |
Description |
Wt. Lbs. |
| 01008E11 |
5/8 to 1/2 Reducer Bushing |
.05 |
02211E08
RPM Load (Lbs) |
1-3/8 OD x 1/2 ID x 11/16 Extended for #35, #40, #50 and #60 Idlers |
.10 |
| 100 |
300 |
500 |
750 |
1000 |
| 696 |
613 |
530 |
427 |
323 |
02211E10
RPM
Load (Lbs) |
1-3/8 OD x 5/8 ID x 11/16 Extended for #35, #40, #50 and #60 Idlers |
.12 |
| 100 |
300 |
500 |
750 |
1000 |
| 696 |
613 |
530 |
427 |
323 |
03209012
RPM Load (Lbs) |
2 OD x 3/4 ID x 9/16 Wide Bearing for #80 Idlers |
.32 |
| 100 |
300 |
500 |
750 |
1000 |
| 1565 |
1565 |
1565 |
1565 |
1565 |
04011016
RPM Load (Lbs) |
2-9/16 OD x 1 ID x 11/16 Wide Bearing for #100 Idlers |
.34 |
| 100 |
300 |
500 |
750 |
1000 |
| 2616 |
2616 |
2616 |
2616 |
2616 |
|
|
