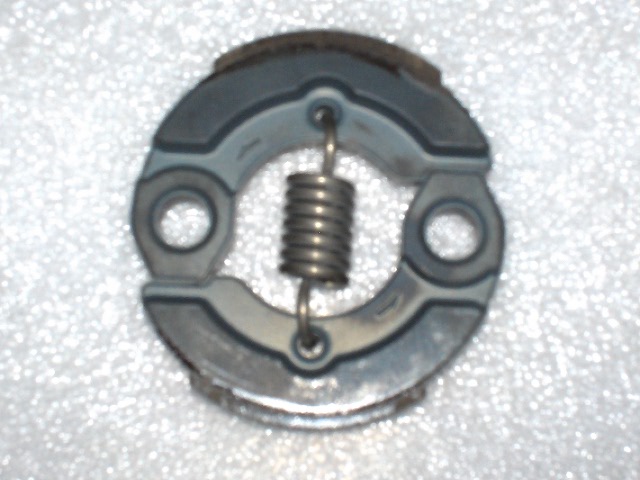

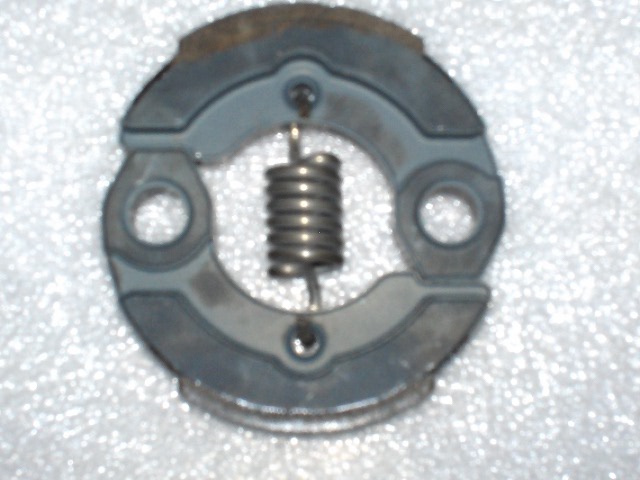

76mm Clutch Rotor, Heavy Duty 2 shoe with 2,625 rpm spring.
Make sure your engine will idle at 2,600 rpm's or less as this clutch engages around 2,625 rpm's.
These Heavy Shoes will "lock" in a lot better when pulling heavy loads or hills then the stanard - light shoe.
The engaging rpm is about 875 rpm's slower the the standard rpm that the Honda GX35 and Robin Subaru EH035.
Total wt. is 210g or 7.4 oz.
Each shoe is 100 g.
The Spring body is .553" OD
Inside H to H is 1.534"
Wire Dia. is .091"

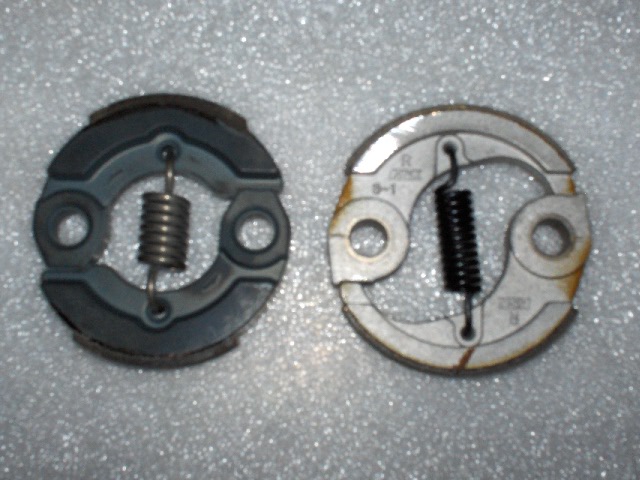

Note: the Shoe for a GX35 or EH035 is 41g or total wt. is 3.2 oz or 92g.
This can be used with the Robin Subaru EH035, Tanaka PF-3500 & PF-4000, Mitsubishi TLE33 & TLE43 you will have to slow the idle down.
Ref# Honda 22000-ZVA-003 with a custom 2,650 rpm spring. The Honda factory spring is around 2,100 rpms.
