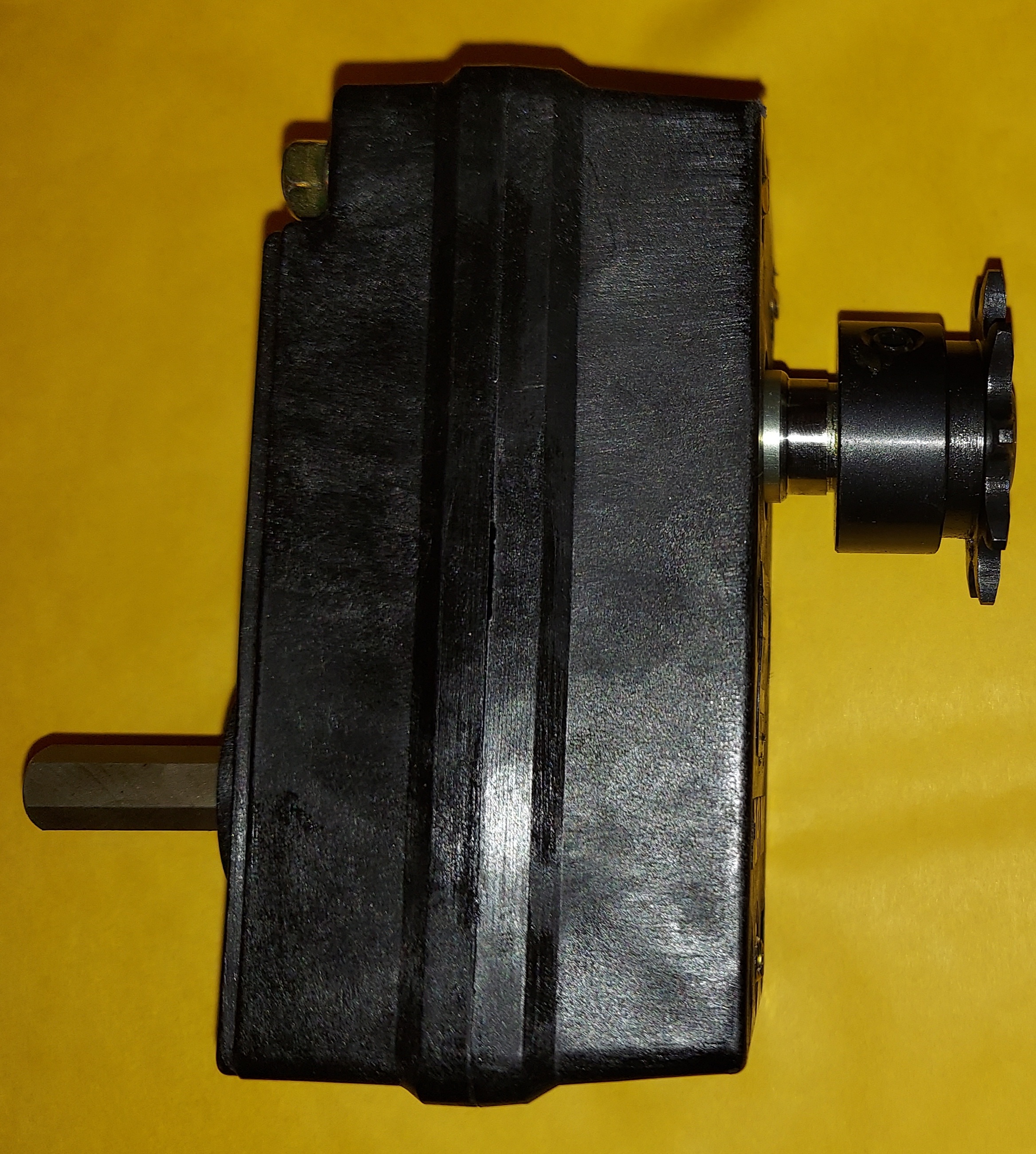

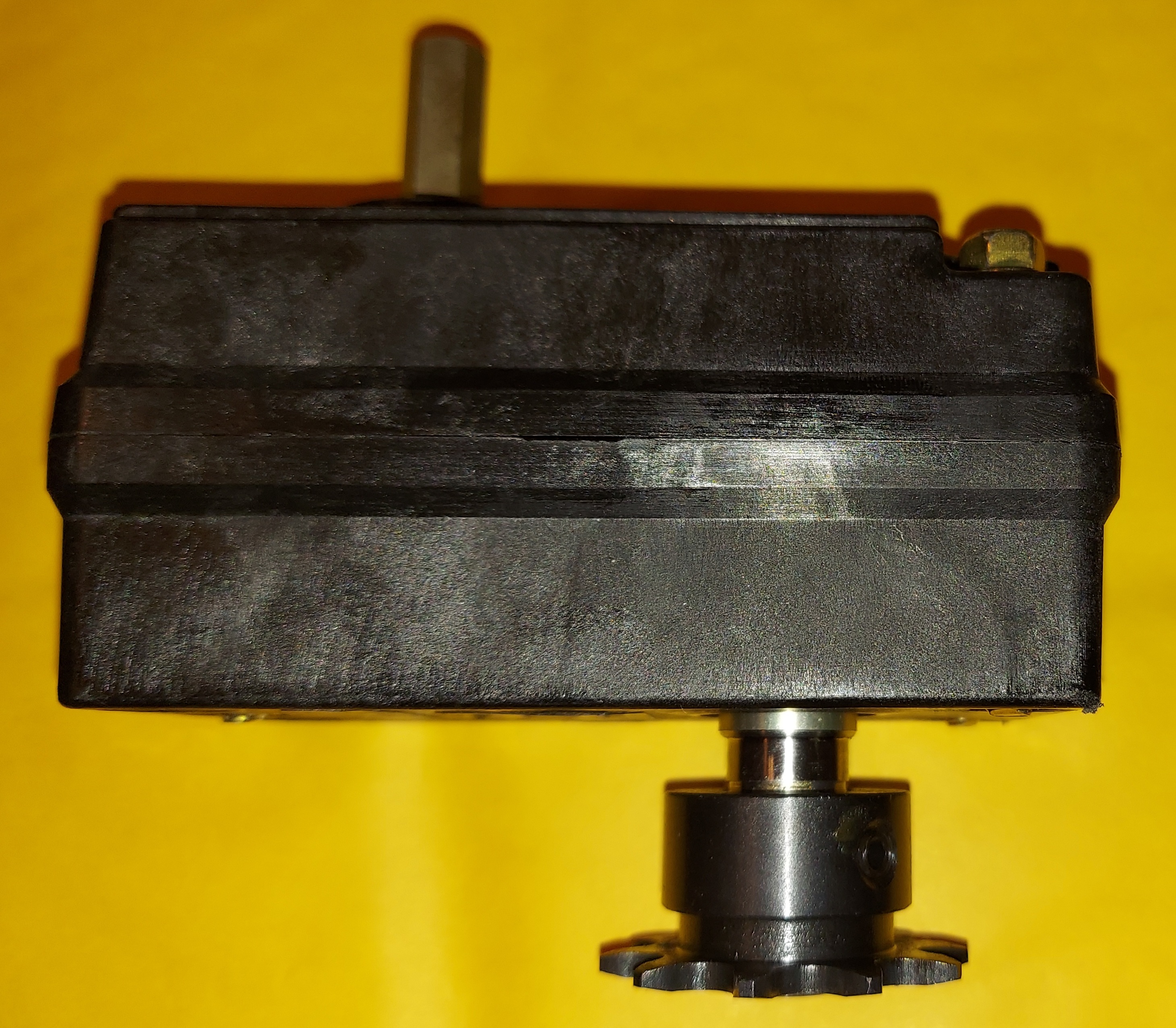

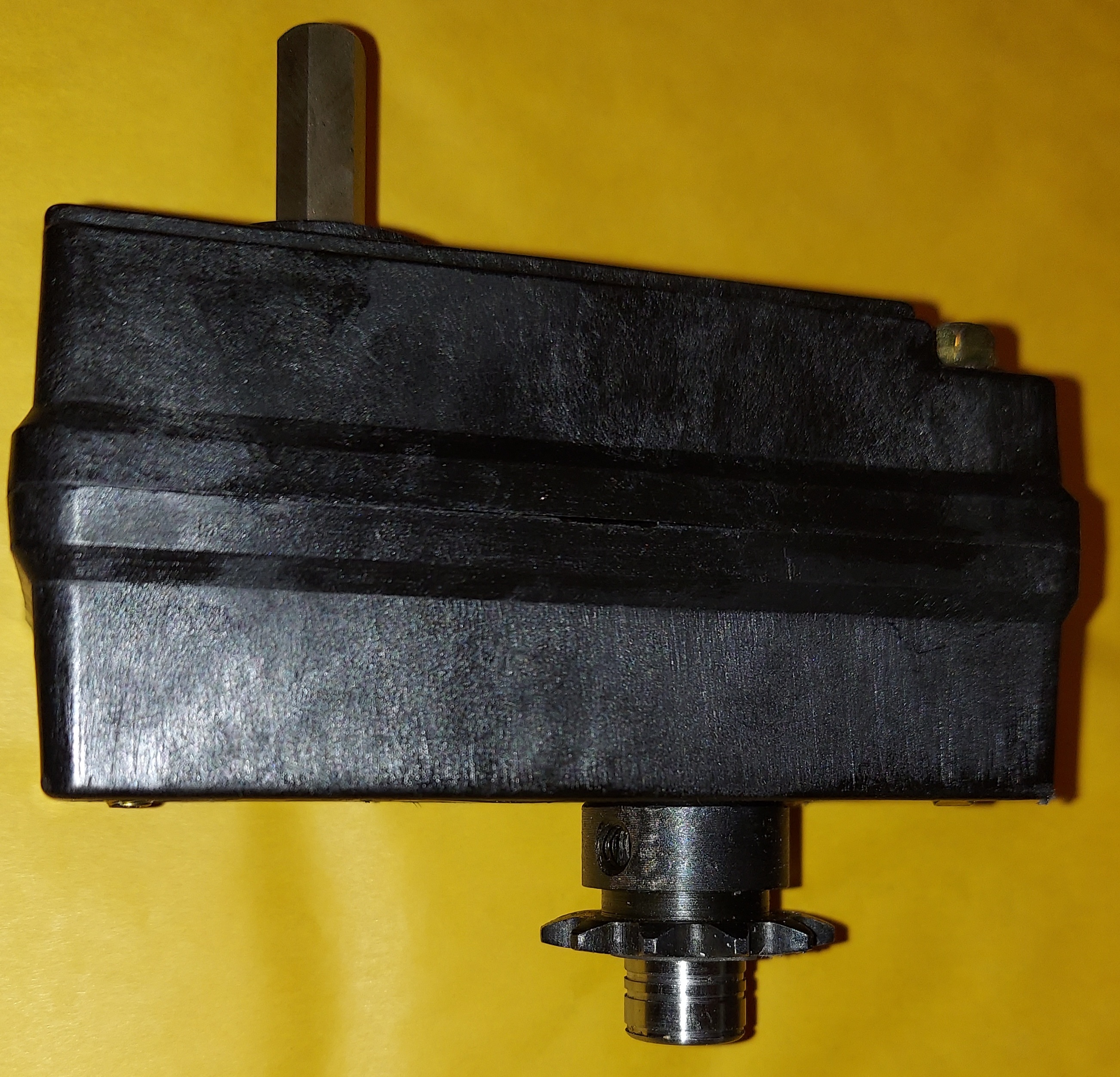

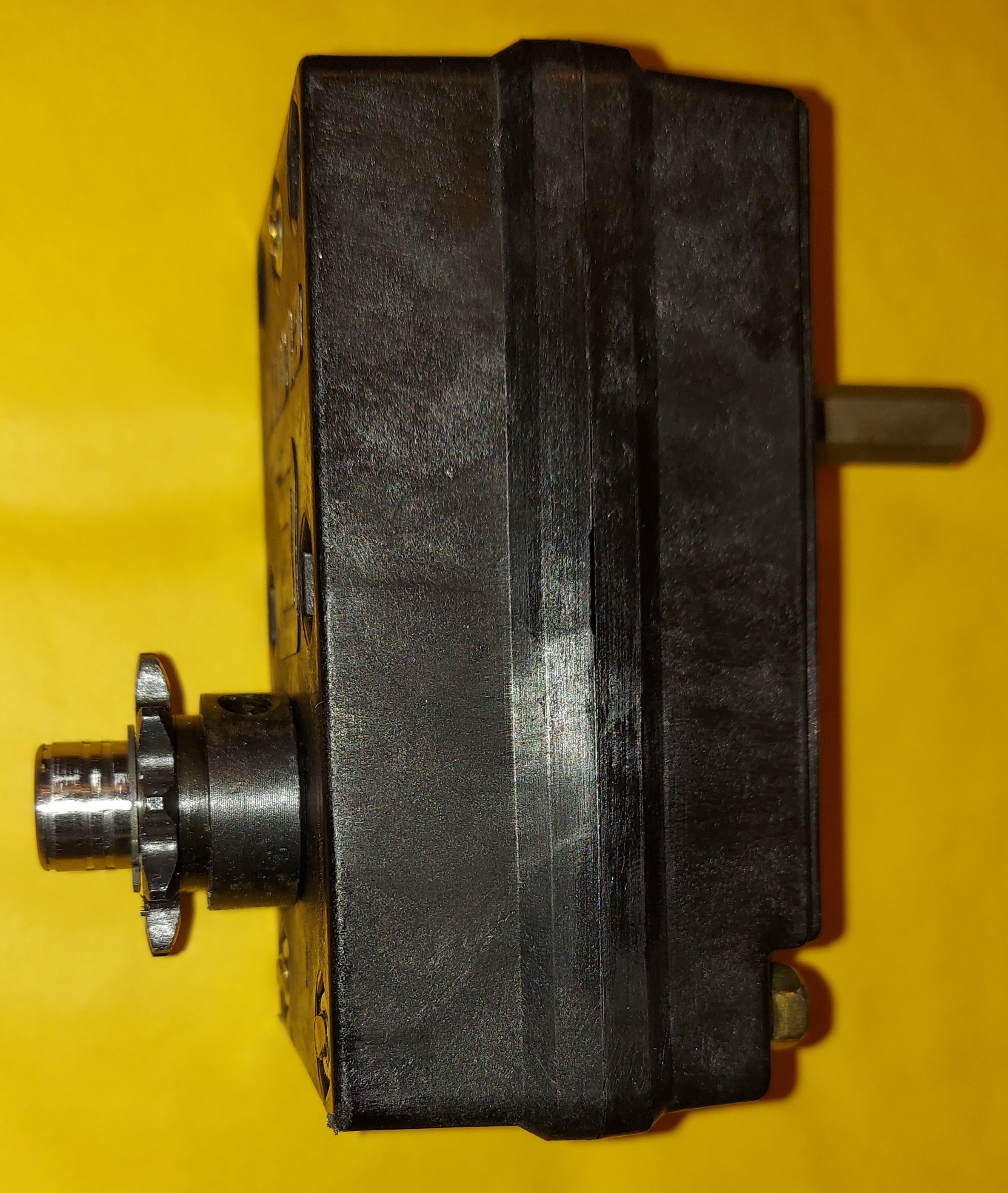

2 to 1 Gear reduction box with idler gear so the input and output 5/8" shaft with 3/16" keyway turns the same direction. We made a new 5/8" shaft with a 3/16" keyway so it is easier to use standard made sprockets and adaptors. Note: We also have a 18 mm shaft version Product ID: 0087
Use your drill to power this. NOTE:The Drill or sprockets are NOT included.
You can motorized all types of products. You can make a powered kit for Trikes, Bikes, Scooters, carts and more. Great for kids or light weight needs or short distances or light loads powered by YOUR drill.
Use your own cordless drill to power your project.
The Hex shaft is the Input shaft.
Be sure and order 5/8" ID sprockets or adaptors if needed:
The #43 sprockets 1/2" x 1/8" will work great for Bikes and trikes. The #35 sprockets 3/8" x 3/16" will work great for many other projects.
Has Ball bearings on the output shaft.
Output shaft is: 5/8" or 0.625" OD Output shaft is: approximately 1.20" long It has snap ring groves Box Width is: 2.73" Box Length is 4.75" Box Thickness is: 2.30"
Input Hex flat to flat is: 0.383" Input Hex edge is: 0.427"
No warranty and No return. These are Brand New, not used.
