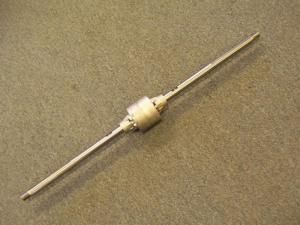

Peerless Brand Differential 1" OD x 38" long Axle Model 141-D  # 794102. Old Model Number: 100-224, same part.

Be sure and order Two (2) of the 3/4-16 nylock nuts as they are hard to find local. 3/4-16 Nylock NE Zinc Plated Nut

We also stock a very wide range of sprockets for this differential and Disc rotors in two sizes.

If you add a Disc brake you may want to add:
5/16-18 x 4.41" OAL or 4.10" long HH Grade 8 BLACK. Bolt Part number # 792093

Overall Width 38" x 1" dia. x 35-1/4" with 6" x 1/4" key way & 1 woodruff key slot, axle with 3/4-16 threaded ends.

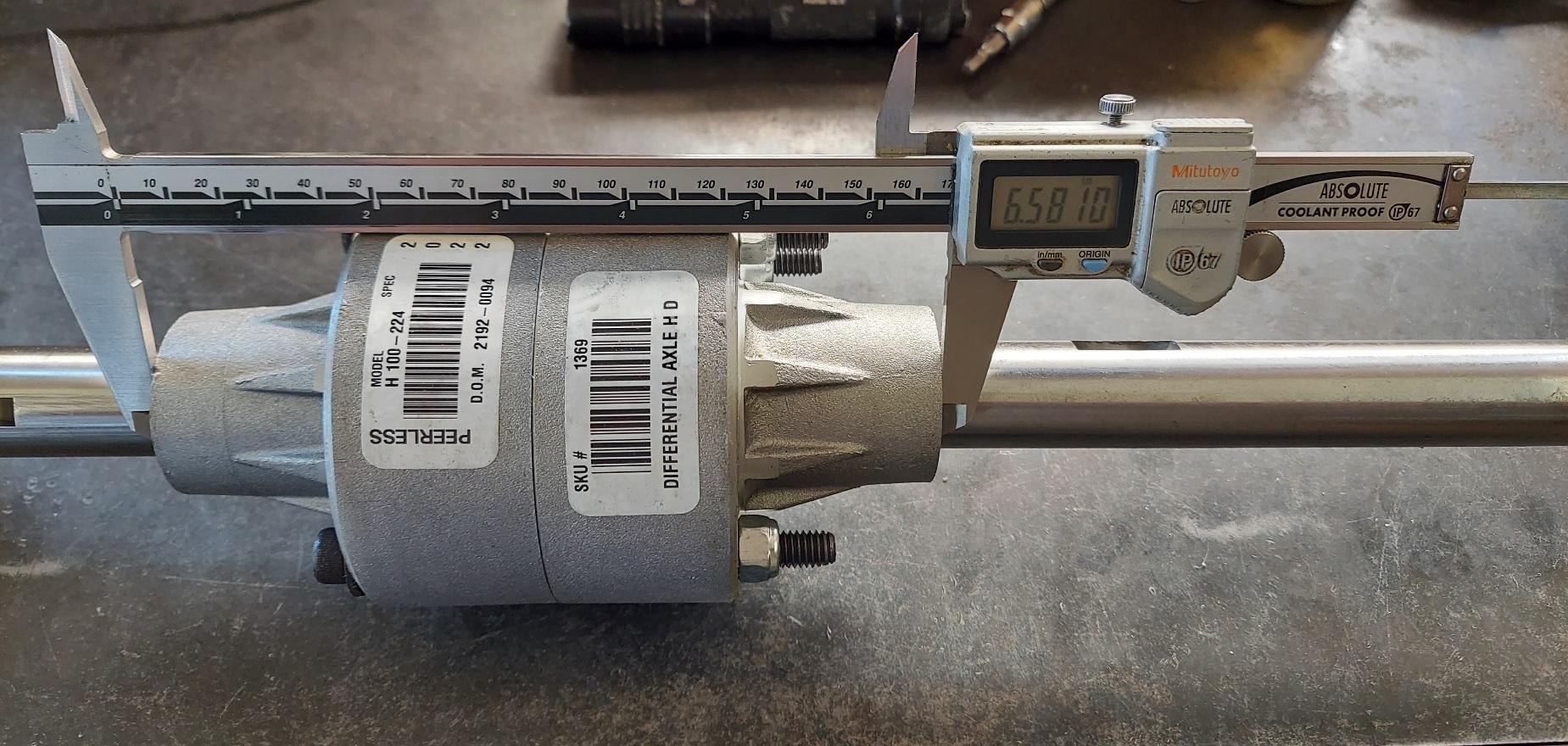

Hub width is 6.58" see picture.

These also can be shortened by cutting the ends with a hack saw.

Use one or two 1" ID Steel Shaft Collar with set screw Black Oxide to secure the wheels.
You may also want to install a Shaft Collar 1" ID Double Split Steel Cyclone, Pedicab on each side so the Bushing does not come out.  Order two.

We may take this apart in order to ship in a smaller box.  Note:  The one taken apart was a 3/4" and no threads on the end.  You are ordering a 1" Dia. with threaded ends.

We also sell the sprockets to fit the four hole pattern.
http://www.staton-inc.com/store/index.php?p=catalog&parent=105&pg=1

If you need pillow block bearings to support the axle we have them too.

NOTE:  You can brake both wheel using a Disc or drum Brake from the HUB and have a Disc or drum Brake on each axle so if one lost traction you could Brake that side and send power to the wheel on the ground.

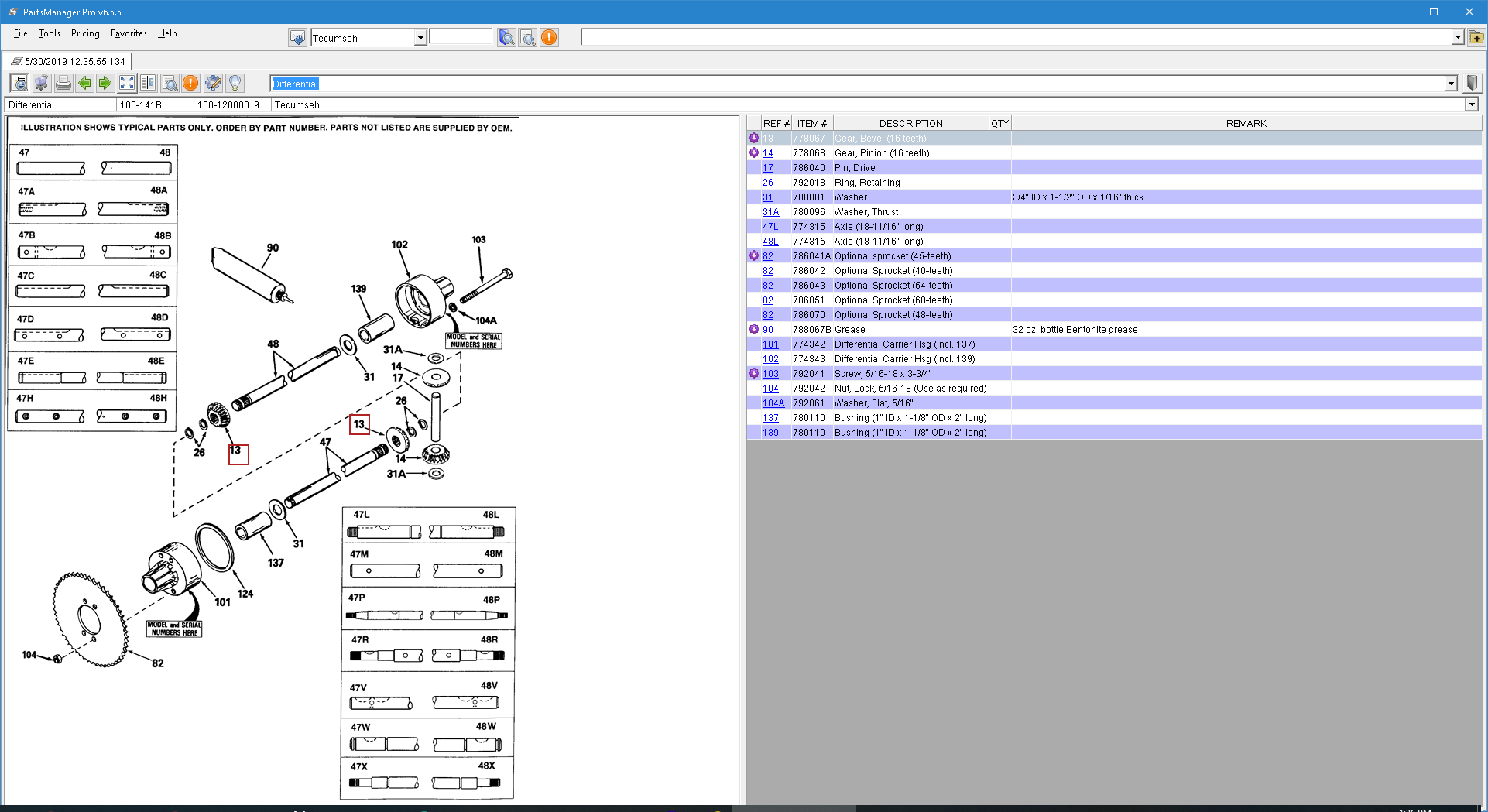

We have included a picture of the parts list.  If you need parts for this differential, email us with the Part numbers and the quantities.
We will get a price at that time via email.


Shipping weight is 18.5 lbs

Sprockets for the Peerless 100 Series - 141-D Differential 4 hole
