ONE: Solo throttle Bracket for the 142 & 154 two cycle engines.
Zinc plated and comes with the parts show.
1ea. CNC machined steel bracket (3/16 thick x 1-1/4 wide x 1-1/2 long steel bracket CNC machined with two 6M x 1.0 threads and One drill 5.1 mm hole)
1ea. Conduit clip drilled for 6mm bolt (to hold throttle casing in place)
1ea. 6mm x 16mm x 1.0 SHCS Black (to hold clip in place)
1ea. 6mm x 1.0 FIN Hex Nut, zinc (for safety)
1ea. 6mm x 1.0 X 6mm SOC SET SC CUP POINT PLA (stop point for throttle cable)
1ea. 5m x .80 x 14mm Button Head, Black ( apply a drop of Blue lock tite)

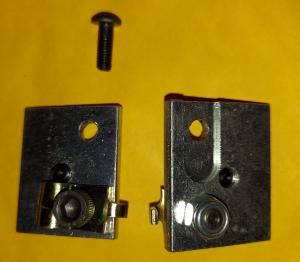

You get ONE bracket, the 2nd bracket is on it's back side so you can see the machined groove that matches the engine mounting bracket to postiton the cable.
Note: It is much better to attach the cable to the bracket, then attach the bracket to the engine with OUT any friction drive kit or gearbox mounted to the engine.
