Honda GX35 35.8 cc 1.60 Hp Four Cycle Axle Mounted Gear & Chain Drive kit.
This kit can be used with wheel sizes from 20" to 28".
The two pictures show the yellow engine cover painted black to match the customers bike and the tank has been re located. Below is a customer comment we received on 3-7-11.
Hi Dave
I will send the pictures you asked for a little later, rain today. Not many miles yet, around 150-200. What do I think of the kit? I can answer the question this way. I have six motorized bicycles ( I have sold several nice motorized bicycles but kept those I like the best, one has won car show awards).
Of the six, my choice for everyday use is this bike with the axle mount. You did a great job on this one Dave and the quality is of the
finest I have seen. Do I like the kit?, you bet I do.
Positive: solid reliability, fairly quiet (much quieter than most), mounts low -good for handling and no heat from engine or exhaust. Over all feeling that I can just enjoy the ride with out tinkering.
Negative: Not really anything. I could be picky and say some gear noise. I have seen the strong gears so when I hear them I am reminded how well it is made. To me the gear noise is low and not the least concern. (note from S-I 99% gear noise will should go away in another 200 miles of riding. I will check back with the customer and post his direct comment in the next 90 days or so.)
If I were to say the engine protrudes out too far, that too is not a concern for me because it fits nicely under the saddle bags.
Hope I have given clear answers,if not please feel free to ask again or anything else you like to ask.
Dave you are very good to do business with and I like your attitude. You are also welcome to use anything I have written here on your website if you wish and that includes the pictures. Should you want to use me as a reference you are welcome to do that also. After you screen the person they can call me.
We need people who run a business as you do. With the cost of transportation going up in all directions, you could offer an important service and am pleased to support it asking nothing in return.
I will try to send the pictures soon.
Best Regards
Bill S.

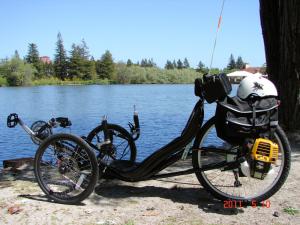

These will mount on all types of bikes and tadpole trikes. With the engine mounted about 14" lower on a 26” wheel, the noise is much less and the center of gravity is great. Every customer that has ordered one of these and has installed it LOVES the kit.
This kit includes the following parts:
One: Small Black throttle lever with #16 mini hose clamp and 60” throttle cable with custom end to fit the engine.
One: Remote Stop - Kill Switch with wire and connecting ends to match engine.
Four: 8” Nylon Black Zip ties to hold the throttle cable and wire to the frame.
Choice of Staton Custom Hub: Made out of 6061-T6 Aluminum.
It has Four high speed double sealed ball bearing, (two on each side), two 12 mm snap rings to hold the axle in place, two, 10 mm x 1.0 flange nuts, one 10 mm x 1.0 hex nut, three 10 mm flat washers to be used as spacers if needed and one: Steel axle kit spacer.
One: Staton Axle CNC machined out of 41L42 CRS and zinc plated.
Pick the axle width from the box above.
NOTE: The Complete wheel is NOT included in the kit. You will need to re lace your old rim and move your freewheel over to your new wheel. If you want a Complete wheel be sure and add that to your order.
You will get the newest gear boxes with the New 14 tooth Pinion Gear with the 4.28 to 1 ratio.
This gear box has the new 14 tooth pinion gear and is very smooth and quiet.
One: New 4.28 to 1 gear box CNC Machined out of 6061-T6 Aluminum with Black anodizing.
One: 60 tooth #35 sprocket, machined to fit a left hand freewheel sprocket and mounting bolts & nuts.
One: Pick one of the #35 Sprockets from the speed chart. These are machined to .505" width and comes with a 5/8” ID and 3/16” key way. If you extra sprockets be sure and add them to the order. Make sure you order the machined #35 sprockets that are .505" wide.
Note: The speed chart is for a 26" wheel:
If you have a 20" wheel your speed would be 30% Slower then the listed speed. 14 tooth = 22.05 mph
If you have a 24" wheel your speed would be 8% Slower then the listed speed. 14 tooth = 28.98 mph
If you have a 27" wheel your speed would be 4% Faster then the listed speed. 14 tooth = 32.76 mph
If you have a 28" wheel your speed would be 8% Faster then the listed speed. 14 tooth = 34.02 mph
Use the Customer comment to type in a note along with the order.
One: Length of Chain #35 Chain, Hitachi Brand made in Japan.
Two: #35 Master Links - Connecting Links made in the USA or Japan.
Two: 9/16” ID Double sealed ball bearing to support the Shaft - Pinion Gear with 14 teeth, 9/16-18 right hand threads.
One: CNC machined Clutch Drum with 9/16-18 right hand threads and two pre drilled holes to install - remove the clutch drum without having to split the gear case.
Two: 5/8” ID high speed double sealed ball bearing to support the output shaft.
One: 5/8” OD output shaft with 3/16” key way and snap ring grove.
One: 60 tooth Gear with ¾” ID and 3/16” key way.
Two: 3/16” x 3/16” x ½” keys.
One: 5/8” OD snap ring (and spacers if needed to position sprocket)
Six: ¼-20-1-½” Socket Head Cap Screws (they hold the gear case together)
One: 6mm x 1.0 x 65mm Socket Head Cap Screw it holds the gear case together and goes into the engine face.
Three: 6mm x 1.0 x 30 mm Socket Head Cap Screws. (they bolt the gear box to the engine face)
Three: 1/4 NPT HEX SOC PIPE tapered PLUG PLATED, one has a 1/16" hole drilled to Vent the gear box.
With the NPT plugs you can remove the engine without splitting the gear case.
One: 2” x 3” x 3/16” x 7” Axle Bracket, Aluminum with Black anodizing.
One: ¼” x 1” x 7” Flat Bar - Brace Aluminum with Black anodizing
One: # 16 Hose Clamp
Six: ¼-20 x 3/4” Socket Head Cap Screws
Eight: 6mm Flat washers Two: 6mm x 20 mm Socket Head Cap Screws.
One: 3/16" Flat washer
Two: 6mm x 1.0 x 20mm Socket Head Cap Screws
Two: 6mm x 1.0 x 18mm Hex Head Bolts
The engine will be mounted to the gearbox. No grease will be in the gear box when it arrives.
So be sure and add 2 oz of the Mobil grease to the gearbox via the NPT Vent plug (the one with the small one in it)
Be sure and oil to the engine and read the engine manual.
