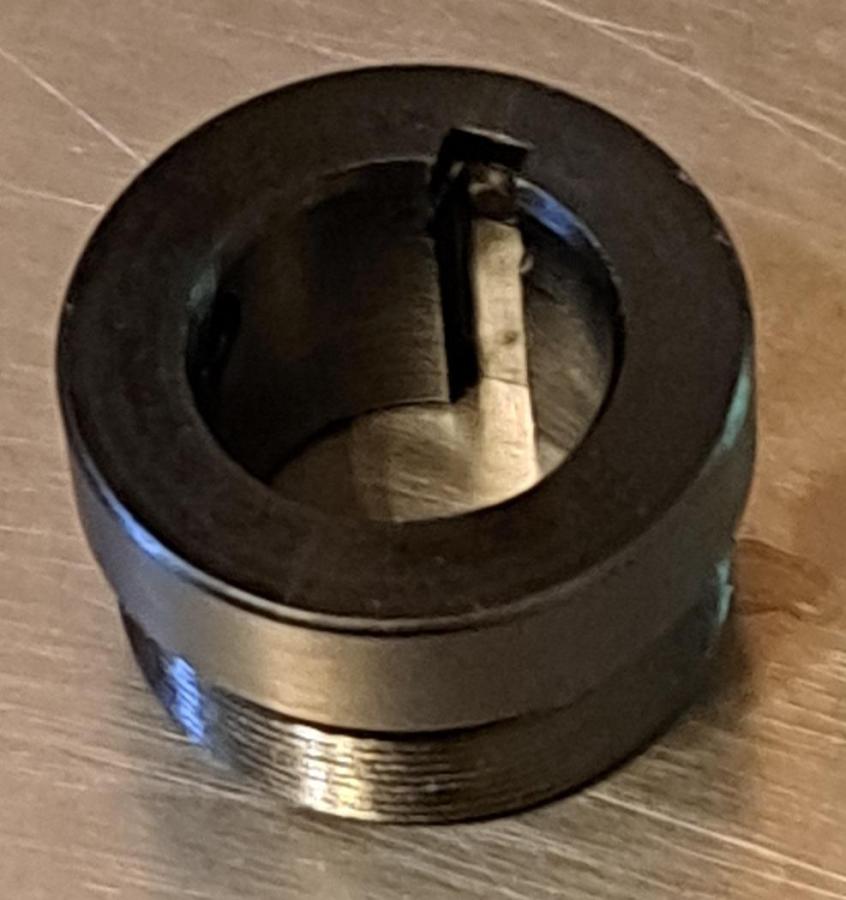

7/8” ID x .9" wide Adapter for freewheel sprockets, 2 set screws. Made out of 12L14 Steel, CNC machined.
7/8" ID x .9" wide, with a 3/16" full keyway with 1.375 x 24 OD CW - right hand threads with black oxide coating.

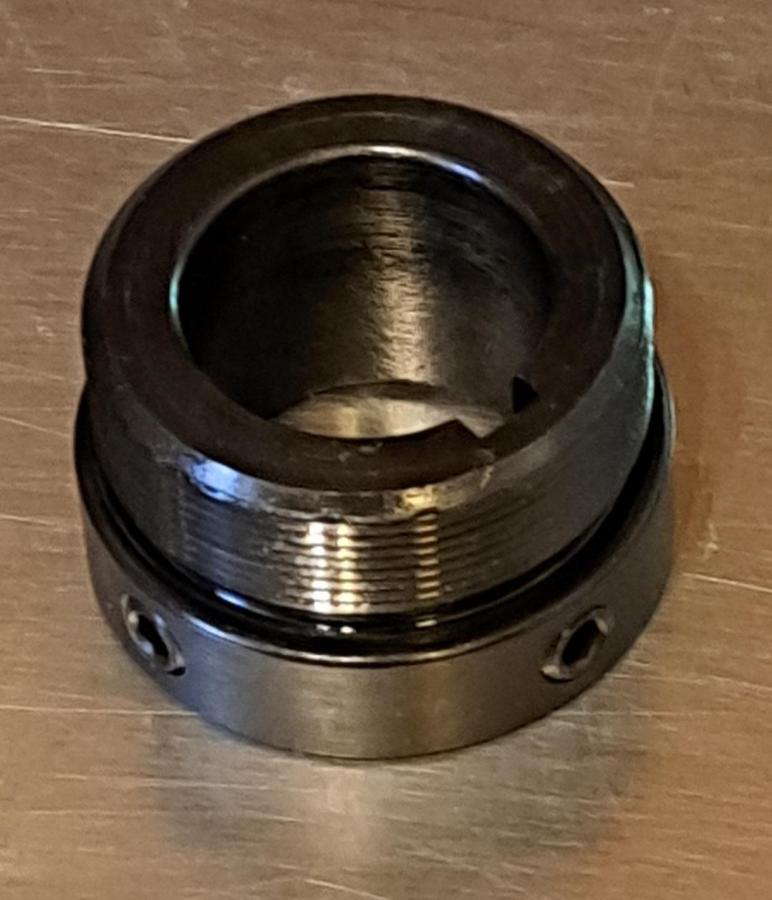

This adaptor has Two drilled and tapped holes.
Includes the two M6-1.0 x 6 MM long set screws.
Search Words: Used on some Pedal Bars - Pedal Pub - Pub Crawl - Pedal Bike Bar - Party Bar Bike - Bar on Bike.
This Freewheel sprocket adapter will fit the following single and multi speed freewheels with 1.375 x 24 CW - right hand threads:
16 tooth 1/2" x 1/8"
16 tooth 1/2" x 3/32"
17 tooth 1/2" x 3/32"
18 tooth 1/2" x 1/8"
18 tooth 1/2" x 3/32"
20 tooth 1/2" x 1/8"
20 tooth 1/2" x 3/32"
22 tooth 1/2" x 1/8"
22 tooth 1/2" x 3/32"
Five Speed Freewheels
Six Speed Freewheels
Seven Speed Freewheels
Eight Speed Freewheels
Click Here to add one or more 3/16 x 3/16 x 3/8 Keys.
Click Here to add one or more 3/16 x 3/16 x 1/2 Keys.
Click Here to add one or more 3/16 x 3/16 x 3/4 Keys.
Click Here to add one or more 3/16 x 3/16 x 1" Keys.
To find all the types & sizes of adapters - adapter - adaptor - Track Cogs - Lock Rings - Track Cog & Three Prong Sprockets:
Type " FWADP " in the Search box.
